Autonics
PSN30-15AC
Inductive Proximity Sensor, Rectangular, 30mm, 100-240VAC, 2-Wire, 20Hz, NC, 30x30x53mm
$46.00

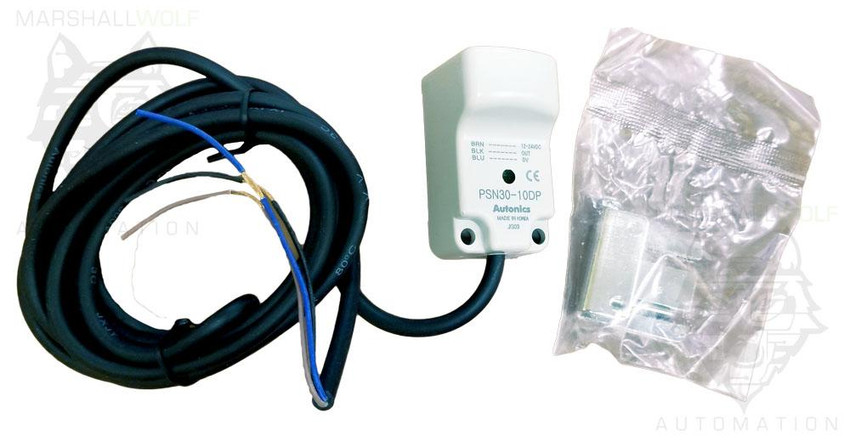

PSN30-10DP
$30.00
Sensor, Proximity, Rectangular, 10mm Range, 53x48.5x30mm, 3-Wire, PNP NO, 12-24VDC
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Sensor, Proximity, Rectangular, 10mm Range, 53x48.5x30mm, 3-Wire, PNP NO, 12-24VDC
Features Include:
- Sensing Distance: 10 mm
- Hysteresis: Max. 10% of sensing distance
- Standard Sensing Target: 30 x 30 x 1 mm (Iron)
- Setting Distance: 0 - 7 mm
- Power Supply: 12-24 VDC
- Operating Voltage: 10-30 VDC
- Response Frequency: 250Hz
- Material: Case: Heat-resistant ABS, Standard cable (black): Polyvinyl chloride (PVC)
- Improved noise resistance with dedicated IC
- Built-in reverse polarity protection circuit (DC 3-wire type)
- Built-in surge protection circuit
- Built-in overcurrent protection circuit (DC type)
- Long life cycle and high reliability
- Red LED status indication
- Protection structure IP67 (IEC standard)
Need More Information?
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics

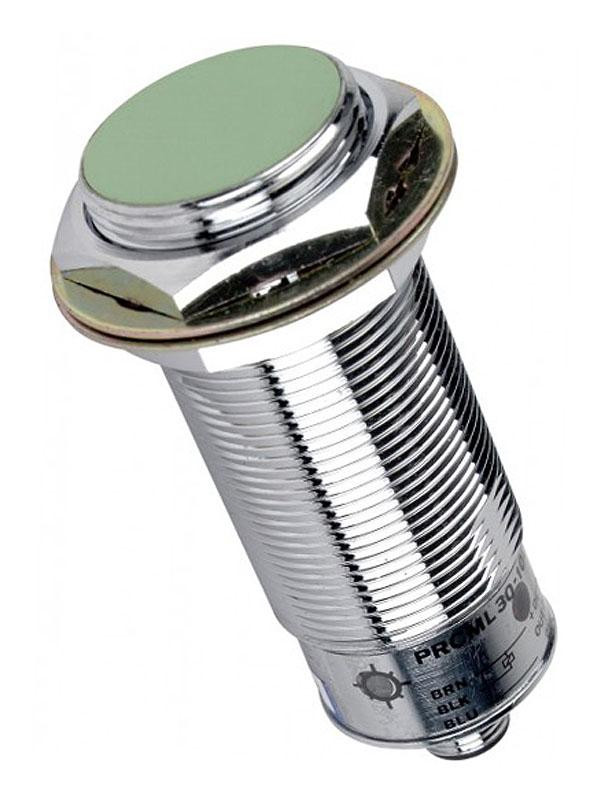

PRCML30-10DP
Inductive Proximity Sensor, M30 Long, Flush, 3-Wire DC, 12-24VDC, 10mm Sensing Distance, PNP NO, Standard Connector, IP67
$57.00
Autonics
PSN30-10DN
Inductive Proximity Sensor, 30mm Square, 10mm End Detection, DC, NPN, NO, 3-Wire, 10-30VDC
$30.00
Autonics
PSN30-15DN
Sensor, Proximity, Rectangular, 15mm Range, 53x48.5x30mm, 3-Wire, NPN NO, 12-24VDC
$30.00
$39.00
$39.00
$53.00
