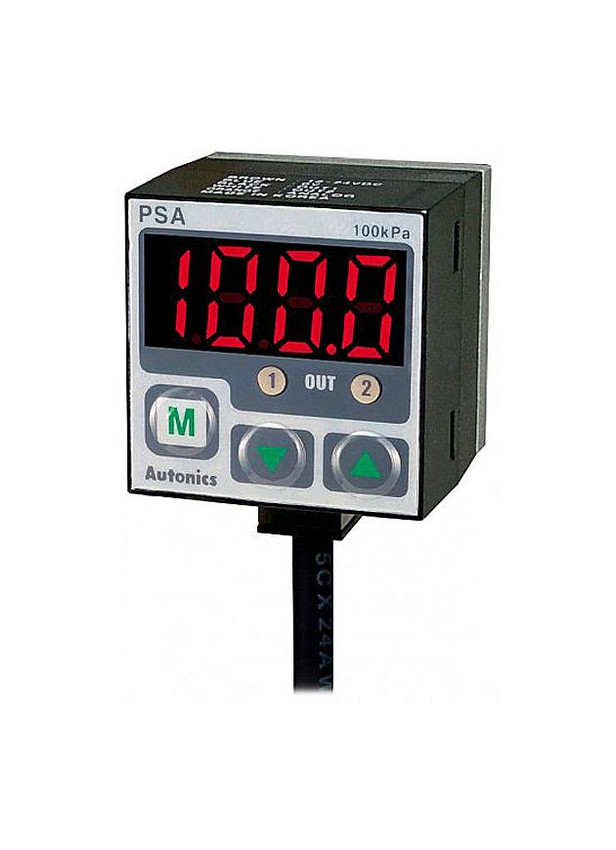

PSA-V01-RC1/8
$129.00
Sensor, Pressure, High Accuracy, Negative, NPN, 30x30mm, Connector, 100kPa,
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Sensor, Pressure, High Accuracy, Negative, NPN, 30x30mm, Connector, 100kPa,
Features Include:
- High brightness red LED (LED height : 9.5mm)
- Min. display interval-Negative pressure: 0.1kPa
- Standard pressure: 0.1kPa, 1kPa
- Compound pressure: 0.2kPa
- Convertible pressure unit
- Negative, Compound pressure : kPa, kgf/cm2, bar, psi, mmHg, mmH2O, inHg
- Standard pressure : kPa, kgf/cm2, bar, psi
- Various output modes : Hysteresis mode, Automatic sensitivity setting mode, Independent 2 output mode, Window comparative output mode
- Chattering prevention for output (selectable response time : 2.5ms, 5ms, 100ms, 500ms)
- One-touch connector type for easy wiring and maintenance
- Analog output: voltage (1-5VDC)
- Reverse power polarity and overcurrent protection circuit
- Zero-point adjustment function, peak value monitoring function, bottom hold display
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$147.00
Autonics

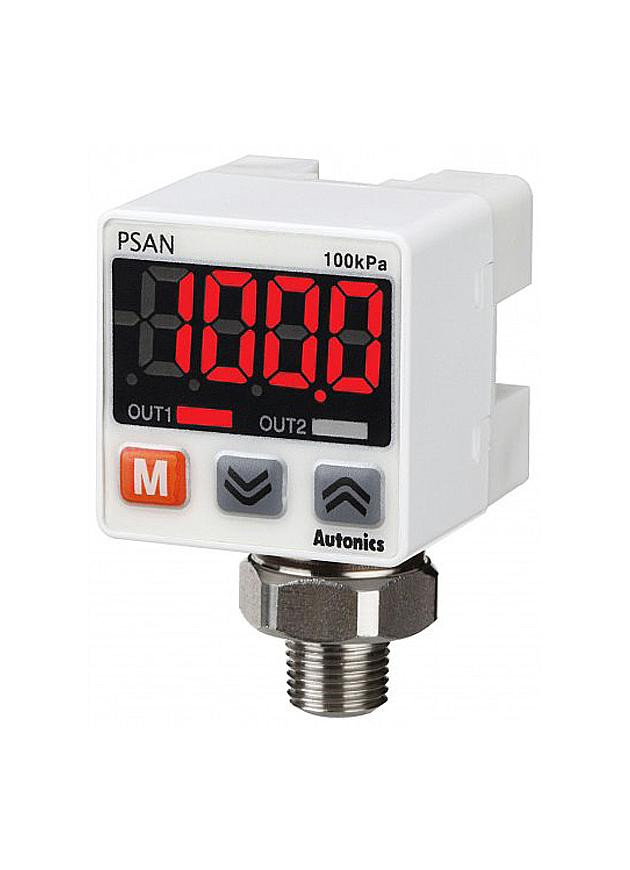

PSAN-V01CH-RC1/8
