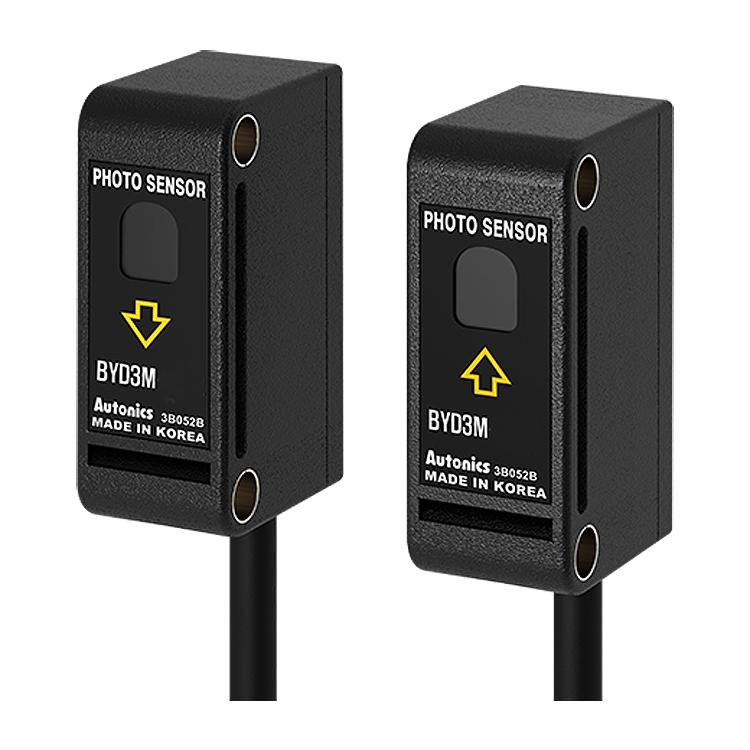

BYD3M-TDT-P

BYD3M-TDT-P

$84.00

Photoelectric Sensor, Thru-Beam, 3m, Opaque, Min Ø6mm, PNP, 12-24VDC

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric Sensor, Thru-Beam, 3m, Opaque, Min Ø6mm, PNP, 12-24VDC

Features Include:

  • Sensing type: Through-beam type
  • Sensing distance: 3m
  • Sensing target: Opaque material of min. Ø6mm
  • Light source: Infrared LED
  • Response time : Max. 1ms
  • Power supply: 12-24VDC ±10%(ripple P-P: max. 10%)
  • Current consumption: Emitter/Receiver: Max. 30mA
  • Operation mode: Dark ON(option: Light ON)
  • Control output: PNP open collector
  • Connection type: Cable type(Ø3.5, 2m)
  • Material Case: Acrylonitrile butadiene styrene, Sensing part: Acrylic, Bracket: Steel Plate Cold Commercial, Bolt: Steel Chromium molybdenum, Nut: Steel Chromium molybdenum, Sleeve: Brass, Ni-plate
