$84.00

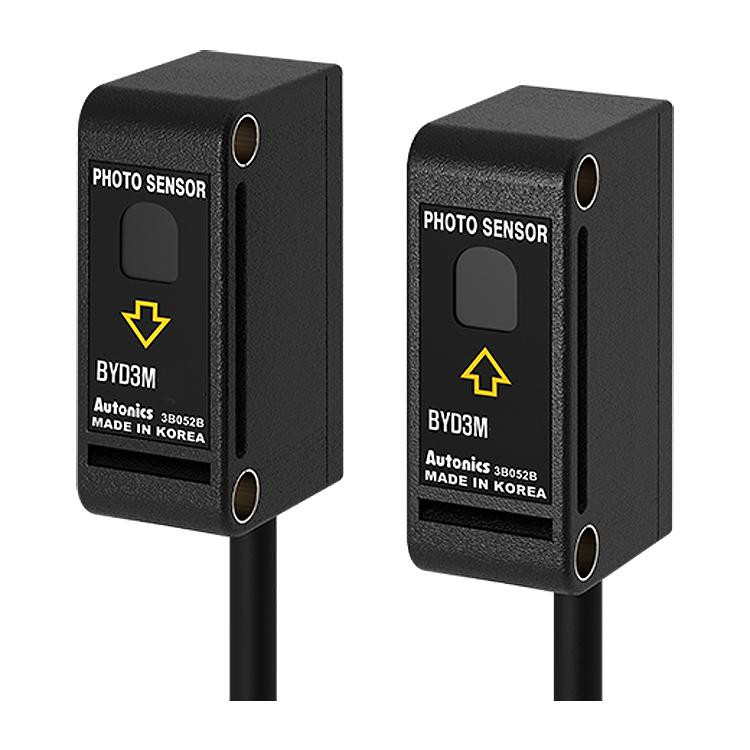

BYD3M-TDT
$84.00
Photoelectric Sensor, Thru-Beam, 3m, Opaque, Min Ø6mm, NPN, 12-24VDC
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor, Thru-Beam, 3m, Opaque, Min Ø6mm, NPN, 12-24VDC
Features Include:
- Sensing type: Through-beam type
- Sensing distance: 3m
- Sensing target: Opaque material of min. Ø6mm
- Light source: Infrared LED
- Response time: Max. 1ms
- Power supply: 12-24VDC ±10%(ripple P-P: max. 10%)
- Current consumption: Emitter/Receiver: Max. 30mA
- Operation mode: Dark ON(option: Light ON)
- Control output: NPN open collector
- Connection type: Cable type(Ø3.5, 2m)
- Material Case: Acrylonitrile butadiene styrene, Sensing part: Acrylic, Bracket: Steel Plate Cold Commercial, Bolt: Steel Chromium molybdenum, Nut: Steel Chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$91.00
$95.00
Autonics
BEN10M-TDT
Photoelectric Sensor, Thru-Beam, Compact, 10m, DC Voltage, Solid-State Output (Transistor)
$79.00
Autonics

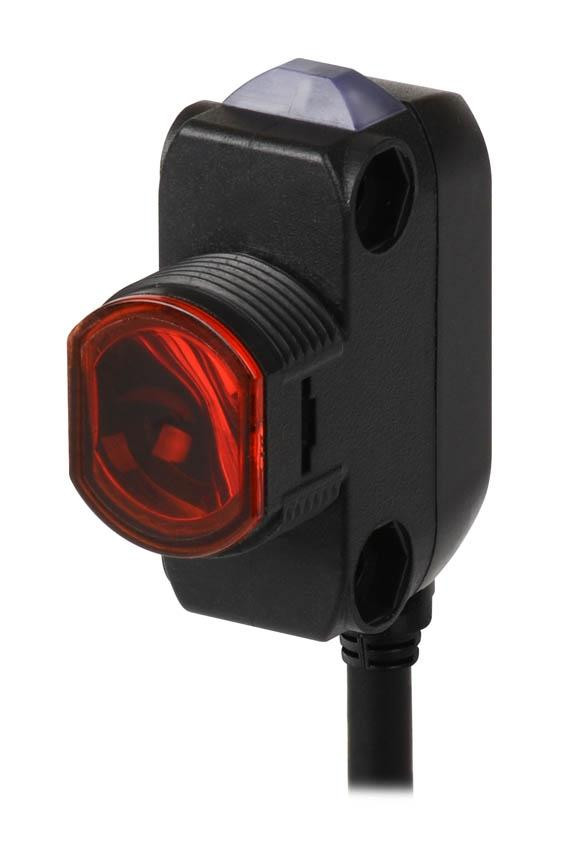

BH20M-TDT
Photoelectric, Thru-Beam, 20m Sensing, 12-24VDC, NPN/PNP, IP67, Front or Side Mount, Compact
$98.00
$104.00
$98.00
$104.00
$107.00
