$98.00
BTF1M-TDTL
$98.00
Photoelectric Sensor, Thru-Beam, 1m, NPN, Light ON, Red LED, 12-24VDC
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Sensor, Photoelectric, Thru-Beam, 1m, NPN, Light ON, Red LED, 12-24VDC
Features Include:
- Sensing type: Through-beam type
- Sensing distance: 1m
- Sensing target: Opaque material of min. Ø2mm
- Light source: Red LED(650nm)
- Response time: Max. 1ms
- Power supply: 12-24VDC ±10%(ripple P-P: max. 10%)
- Current consumption: Emitter/Receiver: Max. 20mA
- Operation mode: Light ON
- Control output: NPN open collector
- Material Case: polybutylene terephthalate, sensing part: polymethyl methacrylate,
bracket: SUS304(steel use stainless 304), bolt: carbon steel, sleeve: SUS304(steel use stainless 304)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics

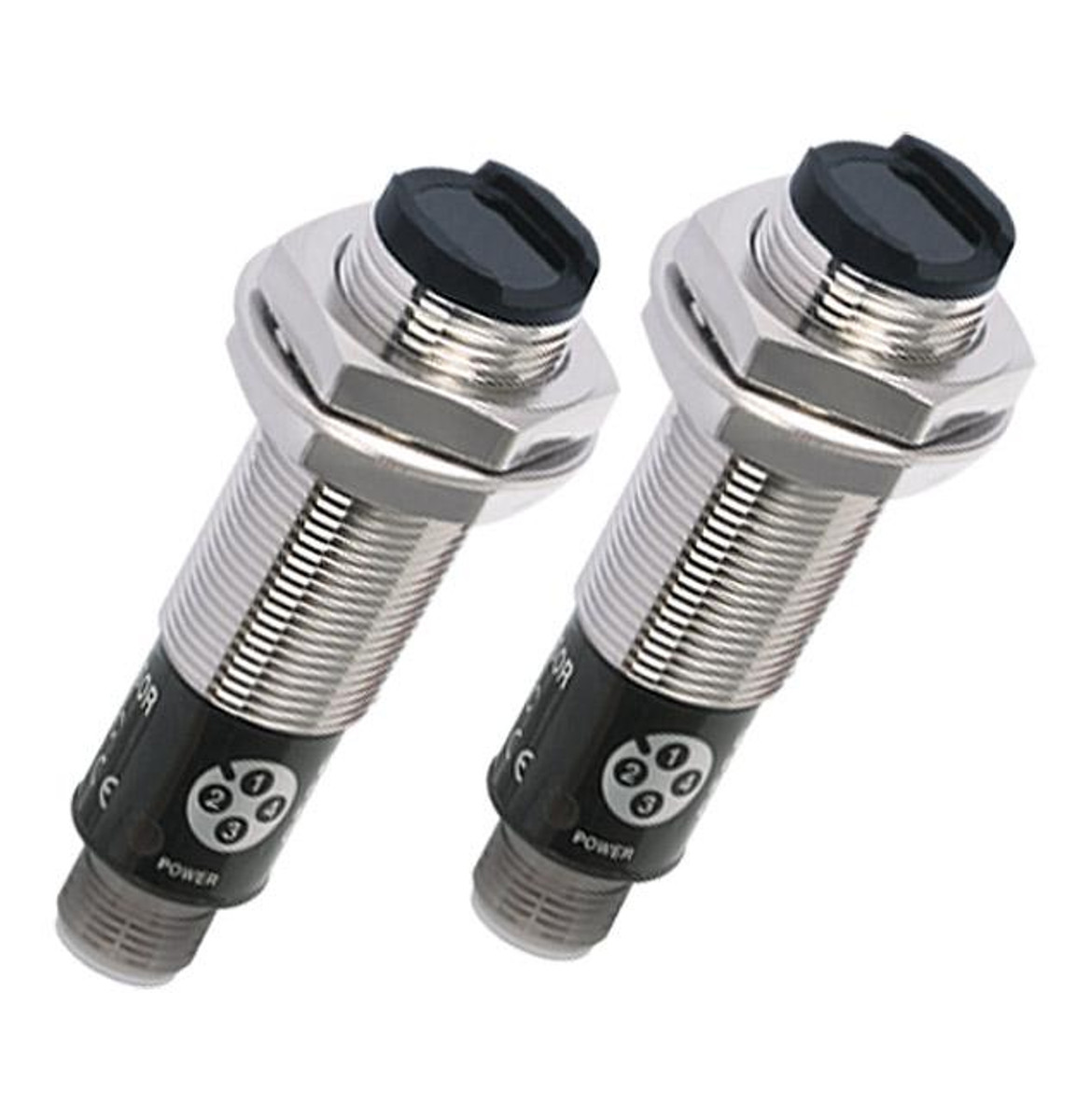

BR20M-TDTL-C
