BX15M-TFR
$107.00

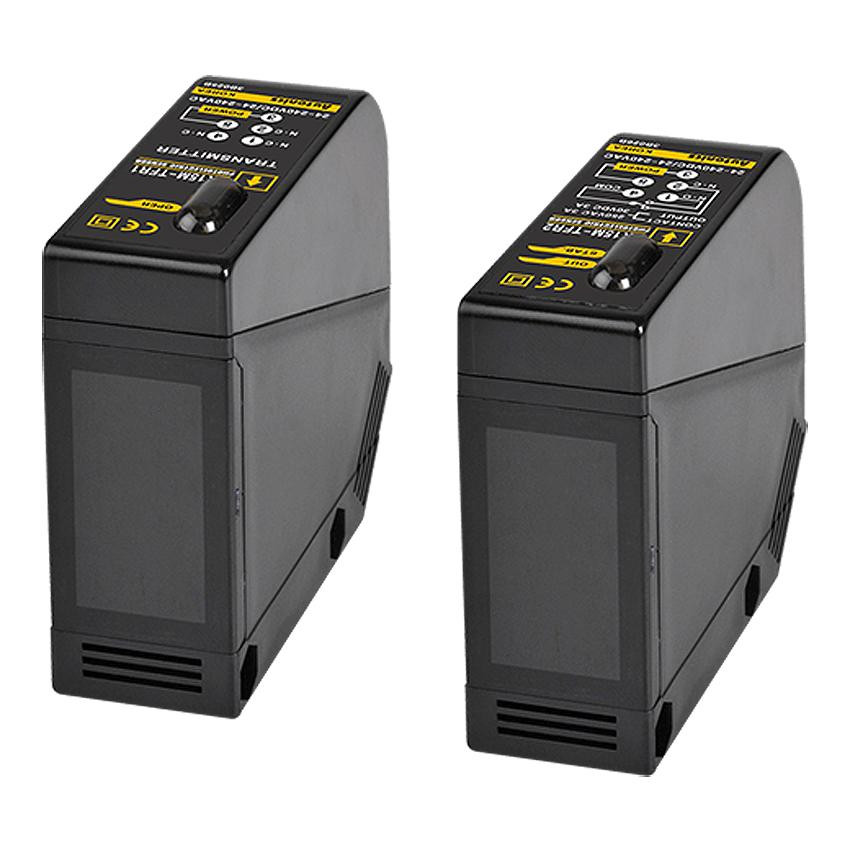

Photoelectric Sensor, Thru-Beam, 15m, NPN/PNP
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Sensor, Photoelectric, Thru-Beam, 15m, NPN/PNP
Features Include:
- Sensing type: Through-beam type
- Sensing distance: 15m
- Sensing target: Opaque material of min. Ø15mm
- Light source: Infrared LED(850nm)
- Response time: Max. 20ms
- Current consumption: Emitter/Receiver: Max. 3VA
- Power supply: 24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)
- Operation mode: Light ON/Dark ON(set by switch)
- Control output: Relay
- Connection type: Terminal block type
- Material Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial,
Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
