Autonics
BRQM400-DDTA-P
Sensor, Photo, Metal body, Diffuse reflective, 400mm Sensing Distance, Light & Dark On, PNP Output, 10-30 VDC
$77.00
BRQM400-DDTA
Alt: This item is the Suggested Replacement for # BR400-DDT
$77.00
Photoelectric Sensor, Diffuse Reflective, Metal Body, 10-30VDC, 400mm Sensing Distance, Light & Dark On, NPN Output
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Sensing type : Diffuse reflective type
- Sensing distance : 400mm
- Sensing target : Opaque, Translucent material
- Light source : Red LED(660nm)
- Response time : Max. 1ms
- Power Supply: 10-30VDC ±10%(ripple P-P: max. 10%)
- Current Consumption: Max. 30mA
- Operation Mode: Selectable Light ON or Dark ON by control wire (white)
- Connection Type: Ø4mm, 4-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm),Selectable Light ON or Dark ON by control wire (white)
- Material: Case: brass, Ni-plate, Lens, Lens cover: polymethyl methacrylate acrylic
Technical Information:
Learn more about Autonics and their products here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics

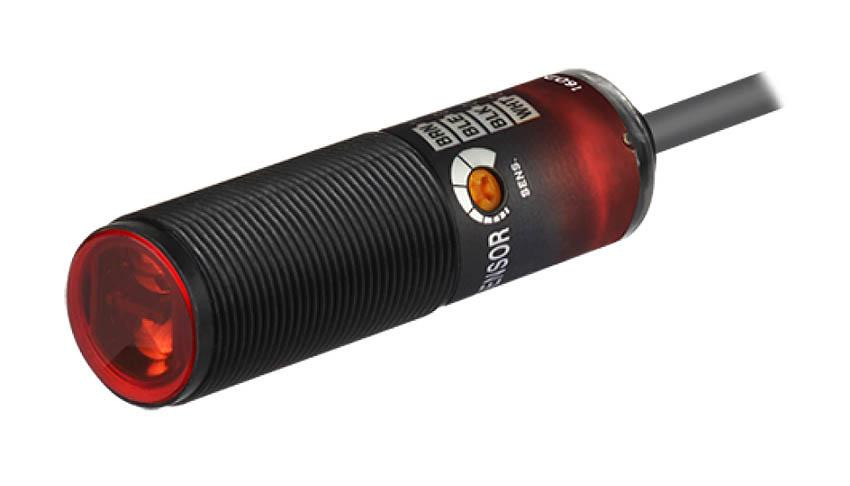

BRQP100-DDTA
