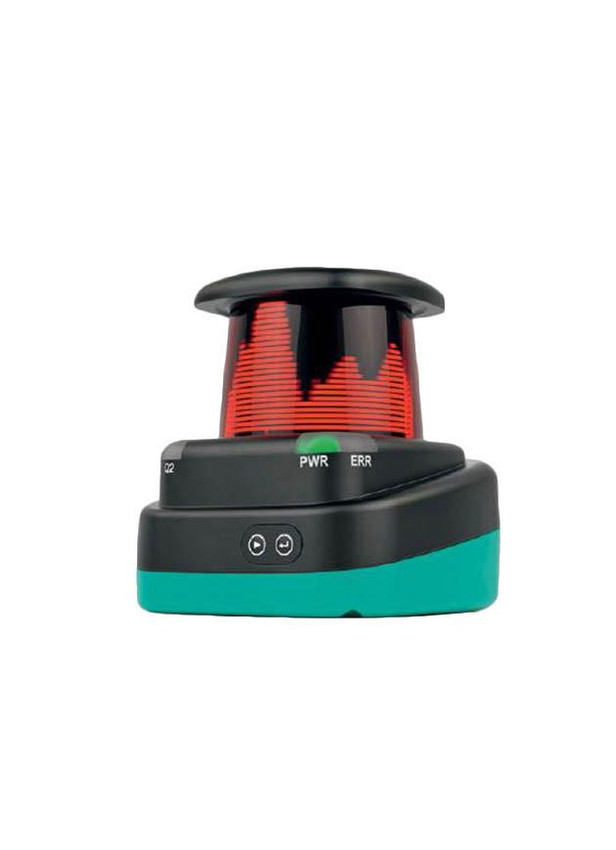

Alt: OBD30M-R2000-4EP-V1V17-T-1L, (Was 279200)

$3,863.91

Detection Sensor, 2-D Laser Scan, 0.1-30m, IP67, 30 Hz Scan Frequency, 4 Input/Output

Weight:
2.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

360° measurement angle gives you true all-around visibility!

R2000 Detection, 2-D laser scanner for precise field monitoring, measuring range to object up to 10 meters.

3 models to choose from:

  • 253403 is 0.2 to 10m, IP65
  • 275236 is 0.1 to 30m, IP65
  • 279200 is 0.1 to 30m, IP67

Features Include:

  • 4 freely programmable monitoring fields
  • 4 inputs/outputs (selectable)
  • High angle resolution
  • 360°-angle of measurement
  • Measuring method PRT (Pulse Ranging Technology) - extremely precise
  • Detection of tiny objects
  • Interactive display provides text and graphical information

Measurement Range

  • 0.1 - 10 m (bk 10%)
  • 0.1 - 30 m (wh 90 %)
  • 0.1 - 30 m (reflector)
  • Min. reflectivity 2.5%

Light Source

  • Laser diode

Light Type

  • Modulated infrared light

Laser Nominal Ratings

  • Laser Class: 1
  • Wave Length: 905 nm

Measuring Method

  • Pulse Ranging Technology (PRT)

Scan Rate

  • 10 Hz, 20 Hz, 30 Hz

Diameter of the light spot

  • 25 mm x 105 mm at 10 m

Operating voltage

  • 10 - 30 V DC

Input/output type

  • 4 Inputs/Outputs , Independently configurable , short circuit/reverse polarity protected

Connection

  • 4-pin, M12x1 connector, standard (supply) ,
  • 8-pin, M12x1 connector, A-coded (MultiPort) ,
  • 4-pin, M12x1 socket, D-coded (LAN)

Housing

  • ABS + PC + aluminum
