SSC-T830

SSC-T830

Alt: This is a Set, Includes Transmitter and Receiver.

$663.81

Light Curtain, Thru-Beam, NPN, Infrared LED, Cable, 50/2500mm Range

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

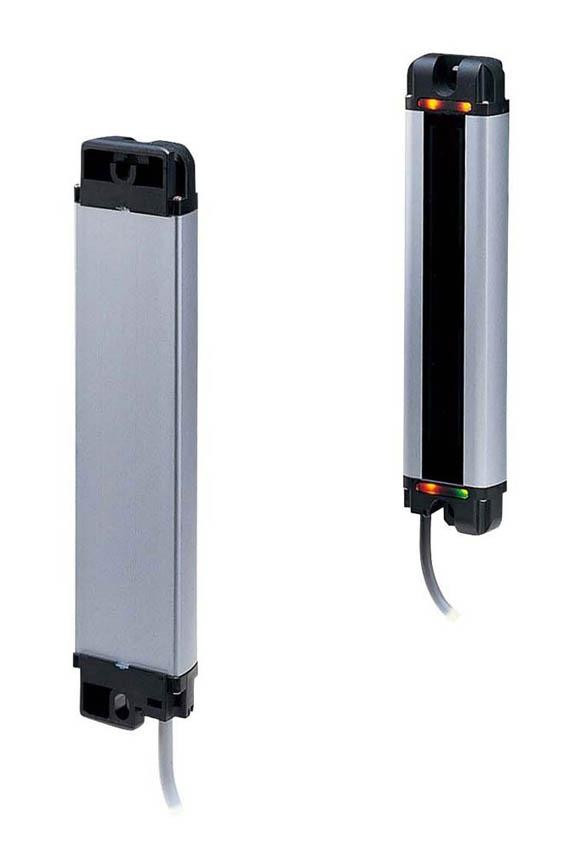

This is a set. It includes transmitter SSC-TL830 and receiver SSC-TR830.
Description
Sensor, Light Curtain, Through Beam, NPN, Infrared LED, Cable, 50/2500mm Range

Features Include:

  • Detection Method: Through beam
  • Detection Distance: 0.5-2.5m
  • Detection Object: Opaque dia.13 mm or more
  • Number of Light Axis: 10

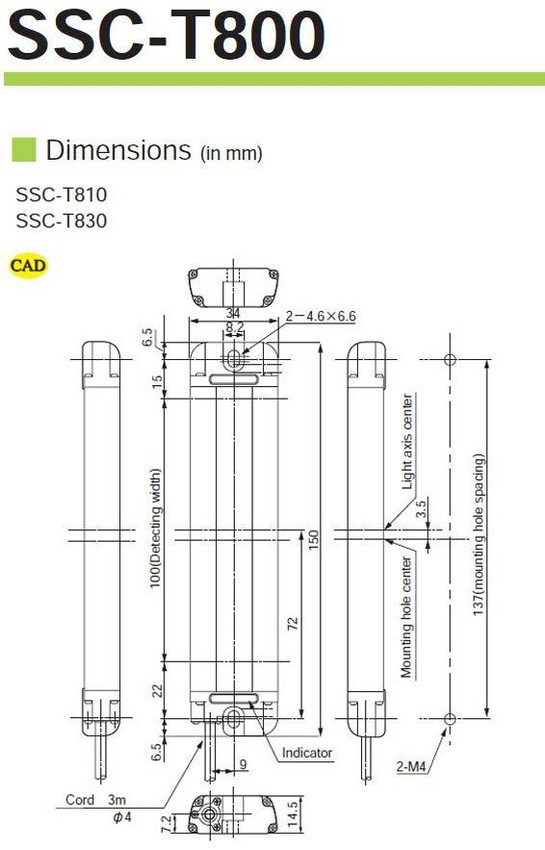

  • Detecting Width: 100mm
  • Optical Axis Interval: 11mm
  • Power Supply: 12 - 24V DC ±10% / Ripple 10% or less
  • Output Mode: NPN open collector Rating: sink current 100 mA (30 VDC or less)
  • Operation Mode: Activated when light beams of all axes are received (deactivated when light beam of any axis is blocked)
  • Response Time Light blocking: 5ms or less Light reception 8ms or less
  • Light source (light wavelength): Infrared LED (870nm)
  • Material:Case body: Aluminum / Caps at ends: glass fiber filled PBT / Front cover : Acrylic
  • Weight: Approx. 130 g (transmitter/receiver)

Current Consumption:

  • Transmitter: 80mA or less
  • Receiver: 110mA or less

Indicator:

  • Transmitter: Power indicator (Green LED)
  • Receiver: Power indicator (Green LED) / Operation indicator ( Orange LED)

Connection:

  • Attached cable (dia.4 mm) 3 m
  • Cable: 0.3 mm2 x 2 cores, gray (transmitter) or 0.3 mm2 x 3 cores, black (receiver)

Environmental Specifications:

  • Ambient Light: 5,000 lx or less
  • Ambient Temperature: –10 - +55C° (non-freezing)
  • Ambient Humidity: 35 - 85%RH (non-condensing)
  • Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
  • Shock: 500 m/s2 / Twice each in 3 directions
  • Dielectric withstanding: 500 VAC for 1 minute
  • Insulation resistance: 500 VDC, 20 MΩ or higher
