Autonics

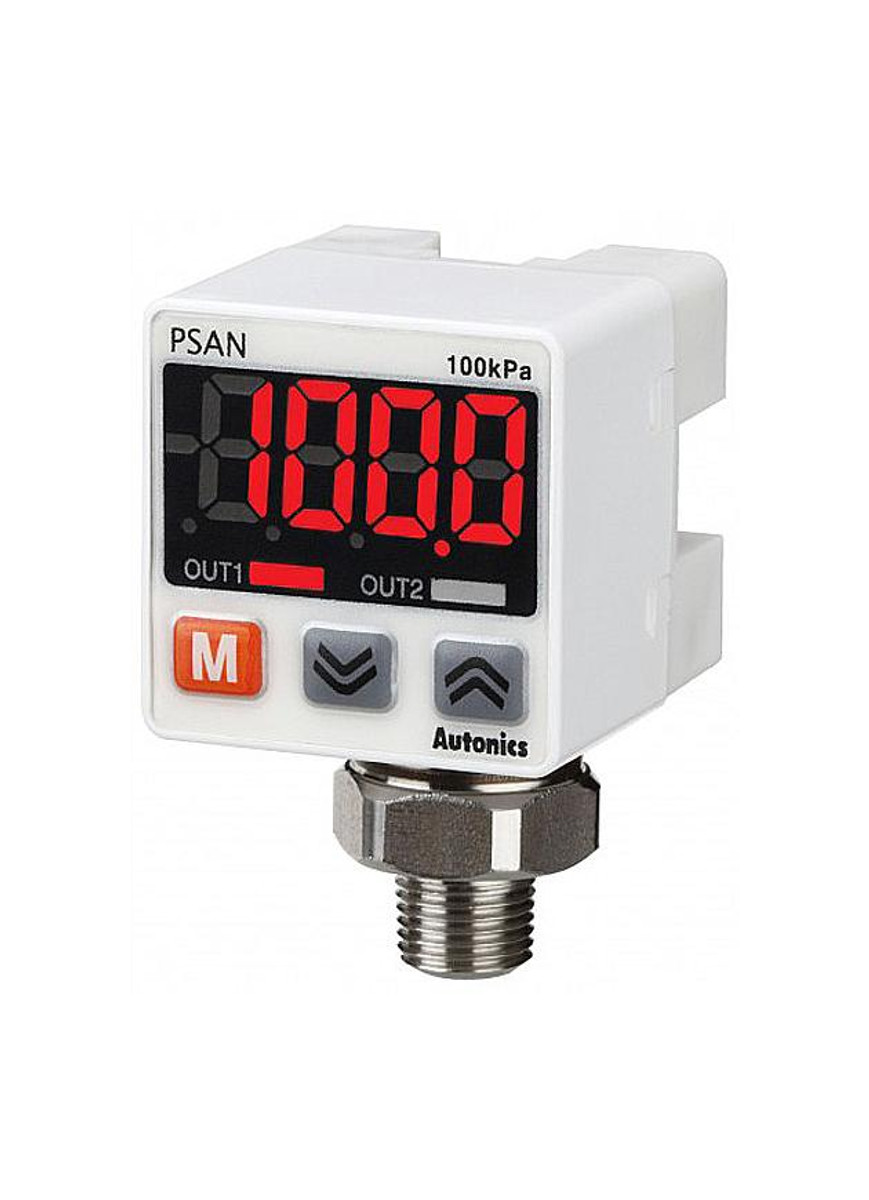

PSAN-C01CV-NPT1/8
Pneumatic Sensor, Digital Pressure, 100kPa, NPN, 30x30mm, Compound, Connector, Voltage
$144.00
PSAN-C01CV-RC1/8
Alt: This Item Replaced PSA-C01-RC1/8
$144.00
Pneumatic Sensor, Digital Pressure, 100kPa, NPN, 30x30mm, Compound, Connector, Voltage,
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Sensor, Digital Pressure, Pneumatic, 100kPa, NPN, 30x30mm, Compound, Connector, Voltage,
Features Include:
- Pressure measurement of any gas, liquid or oil (except substances which may corrode stainless steel 316L)
- Auto shift function: with change in the original pressure, the external input adjusts the determined level to match the change in pressure (only available in models with auto shift/hold function)
- High display resolution:
- Negative pressure: 0.1 kPa
- Standard pressure: 0.1 kPa, 1 kPa
- Compound pressure: 0.1 kPa
- Two independent outputs (N.O. / N.C. output selectable)
- Hold function: hold current display value or control output
- High/low-limit display scale function
- Forced output control mode for device testing and maintenance
- One-touch connector type for easy wiring and maintenance
- Analog output: voltage (1-5 VDC), current (DC 4-20 mA)
- Zero-point adjustment function, peak value monitoring function, chattering prevention function
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics

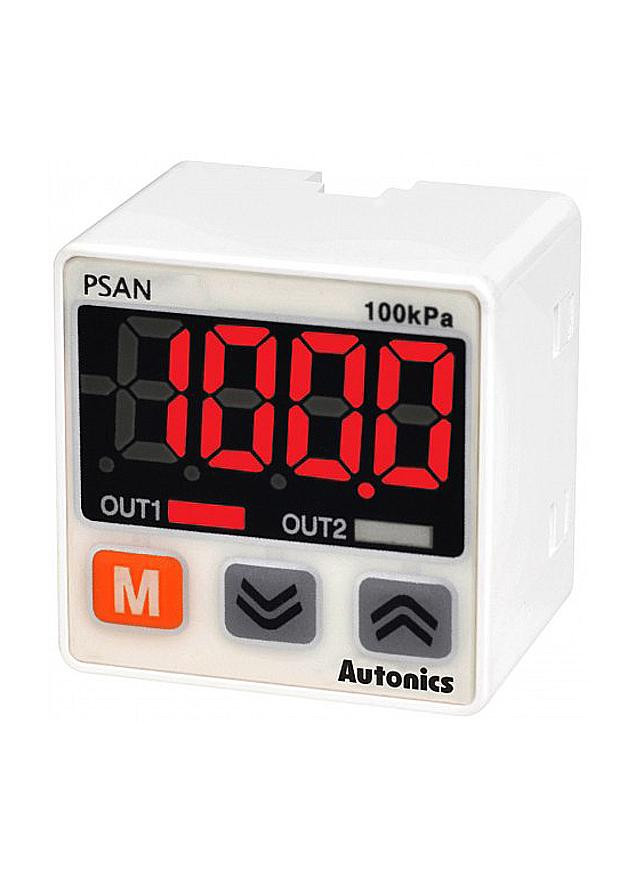

PSAN-V01CH-RC1/8
