Autonics

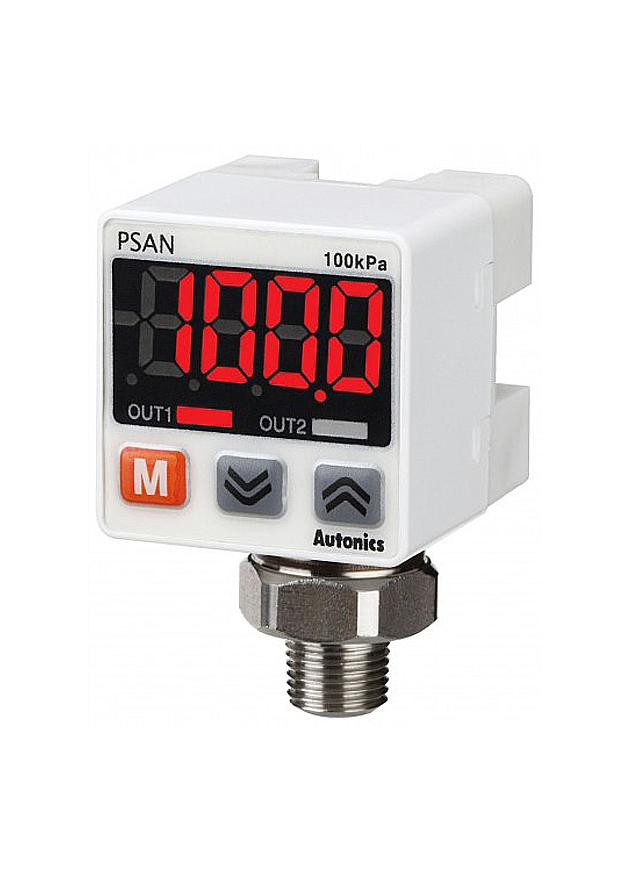

PSAN-1CV-NPT1/8
Pneumatic Sensor, Digital Pressure, 1,000kPa, NPN, 30x30mm, Standard, Connector, Voltage
$144.00
PSAN-1CV-RC1/8
$144.00
Pneumatic Sensor, Digital Pressure, 1,000kPa, NPN, 30x30mm, Standard, Connector, Voltage
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Sensor, Digital Pressure, Pneumatic, 1,000kPa, NPN, 30x30mm, Standard, Connector, Voltage,
Features Include:
- Pressure measurement of any gas, liquid or oil (except substances which may corrode stainless steel 316L)
- Auto shift function: with change in the original pressure, the external input adjusts the determined level to match the change in pressure (only available in models with auto shift/hold function)
- High display resolution:
- Negative pressure: 0.1 kPa
- Standard pressure: 0.1 kPa, 1 kPa
- Compound pressure: 0.1 kPa
- Two independent outputs (N.O. / N.C. output selectable)
- Hold function: hold current display value or control output
- High/low-limit display scale function
- Forced output control mode for device testing and maintenance
- One-touch connector type for easy wiring and maintenance
- Analog output: voltage (1-5 VDC), current (DC 4-20 mA)
- Zero-point adjustment function, peak value monitoring function, chattering prevention function
