520162

Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!



Leuze has an extensive range of sensors including measuring, safety, identifications and switching.



Their U.S. Headquarters is located in Duluth, Georgia.

Features Include:

• Suitable for: MLC 500, MLC 300 safety light curtains
• Current Load, max.: 1 A
• Supply Voltage: 24 VDC, -20 - 20%
• Type of Connection: Cable with connector
• Function: Connection with PLC, Machine interface
• Cable Length: 500 mm
• Sheathing Material: PUR
• Thread Size: M12
• Material: Metal
• No. of Pins: 8-pin

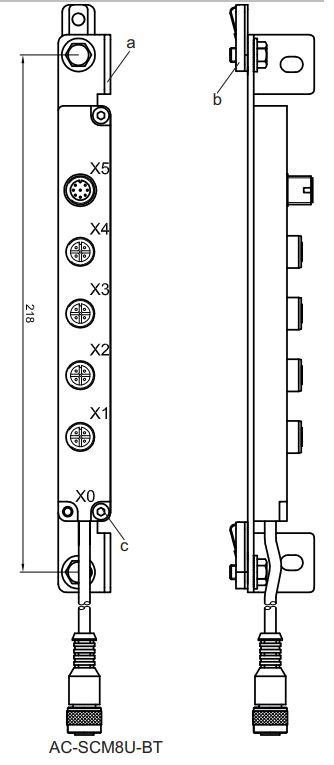

• Dimensions (W x H x L): 22 mm x 28 mm x 235 mm
• Housing Material: Plastic, PA 6

Need More Information?

• Leuze AC-SCM8U-BT-L Datasheet
