220207
Pepperl+Fuchs

220207

Alt: VBA-4E-G11-ZAJ-F

$193.66

Sensor Accessory, Sensor Module

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

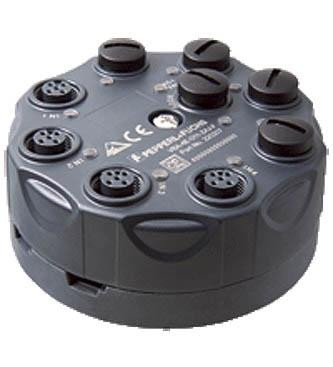

Sensor Accy, Sensor Module

Features Include:

  • Inputs for 2-, 3-, and 4-wire sensors
  • Supply of sensors from AS-Interface
  • Function display for bus and inputs
  • Degree of protection IP68 / IP69K
  • Communication monitoring
  • Cable piercing method with gold plated contact pins
  • AS-Interface POWER24
  • Rated operating voltage: 18.0 - 31.6 V from AS-Interface
  • Rated operating current: ≤ 40 mA (without sensors) / max. 240 mA
  • Voltage: 12 - 31 V
  • Current loading capacity: ≤ 200 mA, overload and short-circuit protected
  • Input current: ≤ 9 mA (limited internally)
  • Ambient temperature: -25 - 70 °C (-13 - 158 °F)
  • Storage temperature: -25 - 85 °C (-13 - 185 °F)

LED AS-i/FAULT

  • Status display: multi-color LED
  • Green: normal operation
  • Red: communication fault
  • Flashing yellow/red: address 0
  • Flashing green/red: sensor supply overload
