Autonics
S3SF-S3W2A

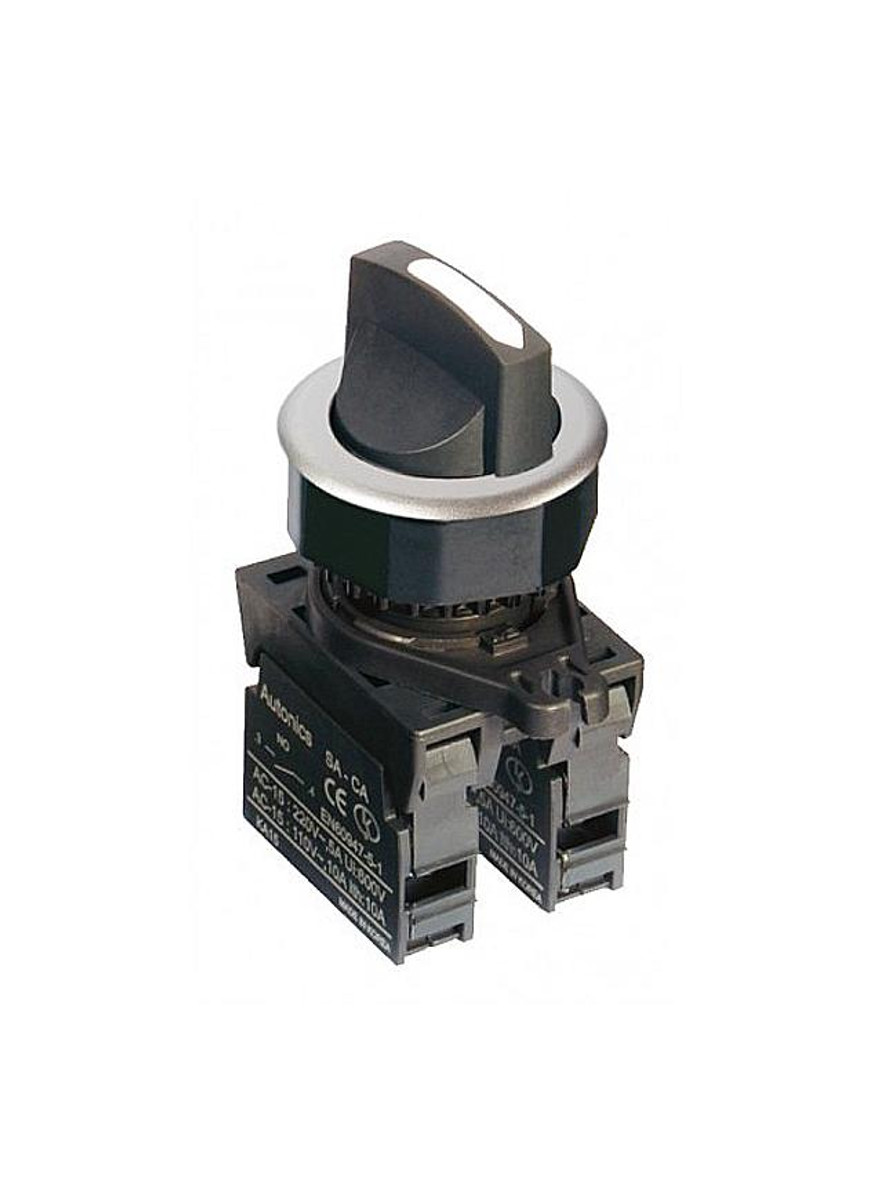

Selector Switch, Ø30mm, 2 Position, Maintained, Short Lever, White, 2NO, 110VAC/10A, 220VAC/5A, *Shipped in Components: 1 of S3SF-S3W & 2 of SA-CA
$14.00
S2SR-S3W2A
Alt: S2SR Series
$12.00
Selector Switch, Ø22mm, 2 Position, Maintained, Short Lever, White, 2NO, 110VAC/10A, 220VAC/5A
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Selector Switch, Ø22mm, 2 Position, Maintained, Short Lever, White, 2NO, 110VAC/10A, 220VAC/5A
Features Include:
- Mechanical characteristics Operation angle: Left 45º , Right 45º
- Contact block Electrical specification Power voltage/current: 110VAC~/10A, 250VAC~/6A
- Protection structure: IP52
- Approval: @(KC) @(CE) @(CULUS)(LED blocks are except @(KC) certifications)
- Weight Mounting hole Ø22/25: Approx. 19g
- Weight Housing: Approx. 7g
- Weight Contact block Singular type A/B contact: Approx. 11g
- Operation type: Short lever 2-position, maintained
- Color: White
- Contact block A contact: 1
- Contact block type: Singular type
- Environment Ambient temperature: -15 to 55℃, storage: -25 to 65℃
- Environment Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
