IDEC
HW1S-31TF22

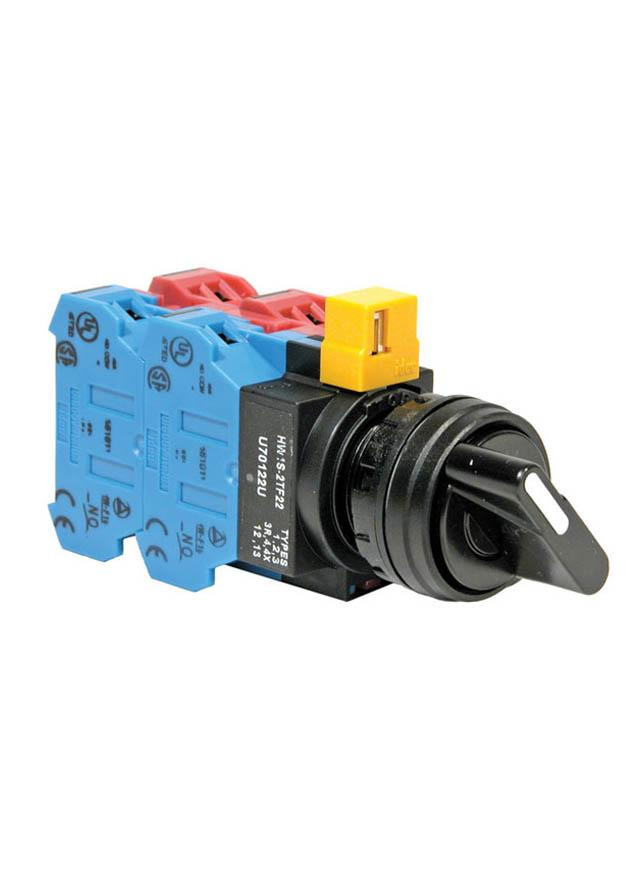

Selector Switch, 22mm, 3-Position, Plastic, Spring Return From Right, Knob, 2NO/2NC, NCNR
$33.04
HW4S-31TF22
Alt: HW Series
$29.00
Selector Switch, 22mm, 3-Position, Metal, Spring Return From Right, Knob, 2NO/2NC
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Selector Switch, 22mm, Metal, 3 Position, Spring Return from Right, Knob, 2NO/2NC
Specifications
Illuminated/Non-Illuminated
See Spec
Material
Metal
Normally Open/Closed
2NO/2NC
Pushbutton Type
Auto Spring Return
Series
HW Series
Size
22mm
Type of Product
Selector Switch
All - Voltage
See Spec or N/A
Warranty
1 Year
Alternate Part Number
HW Series
Weight
0.25
Series Features Include:
- Finger safe (IP20) screw terminals standard, other terminal styles available
- All E-Stops meet EN418 (IEC compliant, positive action)
- UL listed, CSA certified, TUV approved, and CE marked
- Super bright incandescent or LED illumination
- UL Type 4X, IP65
- 600V/10A contacts with a wide operating range from 5mA at 3V AC/DC to 10A at 120V AC
