SCE-AC8500B230VSS6
$7,520.03

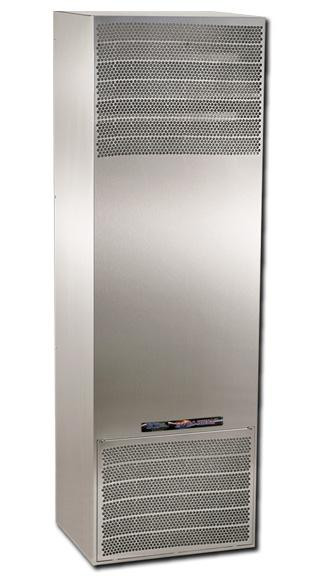

Air Conditioner, 8500 BTU, Hr. 230 Volt, UL IS20
- Weight:
- 198.00 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw offers just about every type of enclosure; steel, stainless steel, non-metallic and custom! All NEMA ratings and styles are available as well as a complete line of accessories.
Saginaw enclosures have been designed and manufactured in Michigan since 1963.
Features Include:
- Rated Operating Voltage / Frequency: 230 V - 50/60 Hz
- Rated Current @ 95°F/95°F: 4.4 A
- Starting Current: 22.5 A
- Max. Current: 8.4 A
- Power Consumption @ 95°F / 95°F: 1.03 kW
- Max. Power Consumption: 1.30 kW
- Cooling Capacity @ 95°F / 95°F/: 8500 BTU (2490 Watts)
- Cooling Capacity @ 131°F / 131°F: 9881 BTU (2895 Watts)
- Heating Capacity: 1500 W
- Compressor: Rotary Compressor
- Refrigerant: R134a
- Refrigerant Charge: 34.00 oz
- Max. Pressure: 362 psig
- Operating Temperature Range: -4°F - 131°F
Housing Material:
- Mild Steel, Powder Coated
- SS: Stainless Steel AISI 304
- SS6: Stainless Steel AISI 316
