SCE-AC3400B460V
$2,968.92

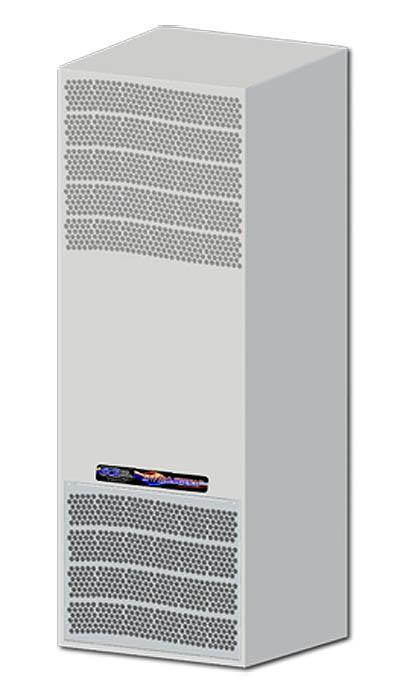

Air Conditioner, 3400 BTU, Hr. 460 Volt, UL IS19
- Weight:
- 109.56 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw offers just about every type of enclosure; steel, stainless steel, non-metallic and custom! All NEMA ratings and styles are available as well as a complete line of accessories.
Saginaw enclosures have been designed and manufactured in Michigan since 1963.
Features Include:
- Rated Operating Voltage / Frequency: 400/460 V - 50/60 Hz
- Rated Current @ 95°F/95°F: 1.8 A
- Starting Current: 9.2 A
- Max. Current: 2.9 A
- Power Consumption @ 95°F / 95°F: 600 kW
- Max. Power Consumption: 900 kW
- Cooling Capacity @ 95°F / 95°F/: 3400 BTU (996 Watts)
- Cooling Capacity @ 131°F / 131°F: 4324 BTU (1267 Watts)
- Heating Capacity: 400 W (optional)
- Compressor: Reciprocating Compressor
- Refrigerant: R134a
- Refrigerant Charge: 9.90 oz
- Max. Pressure: 442 psig
- Operating Temperature Range: -4°F - 131°F
Housing Material:
- Mild Steel, Powder Coated
- SS: Stainless Steel AISI 304
- SS6: Stainless Steel AISI 316
