$45.39
SCE-AC2550B230VSS
$3,201.44

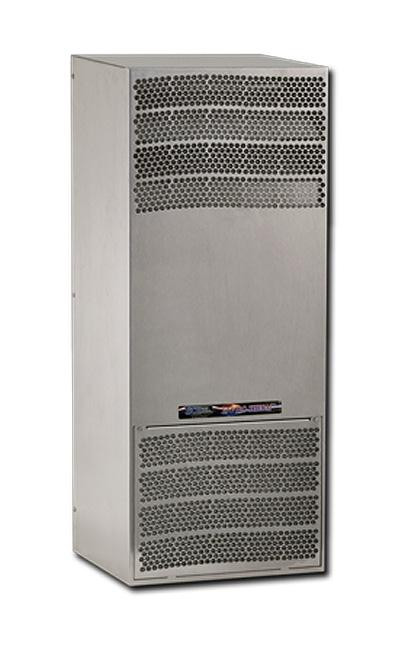

Air Conditioner, 2550 BTU, Hr. 230 Volt, UL IS20
- Weight:
- 81.84 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw offers just about every type of enclosure; steel, stainless steel, non-metallic and custom! All NEMA ratings and styles are available as well as a complete line of accessories.
Saginaw enclosures have been designed and manufactured in Michigan since 1963.
Features Include:
- Rated Operating Voltage / Frequency: 230 V - 50/60 Hz
- Rated Current @ 95°F/95°F: 3.7 A
- Starting Current: 11 A
- Max. Current: 3.7 A
- Power Consumption @ 95°F / 95°F: 580 kW
- Max. Power Consumption: 780 kW
- Cooling Capacity @ 95°F / 95°F/: 2550 BTU (747 Watts)
- Cooling Capacity @ 131°F / 131°F: 2788 BTU (817 Watts)
- Heating Capacity: 400 W
- Compressor: Reciprocating Compressor
- Refrigerant: R134a
- Refrigerant Charge: 8.29 oz
- Max. Pressure: 457 psig
- Operating Temperature Range: -4°F - 131°F
Housing Material:
- Mild Steel, Powder Coated
- SS: Stainless Steel AISI 304
- SS6: Stainless Steel AISI 316
