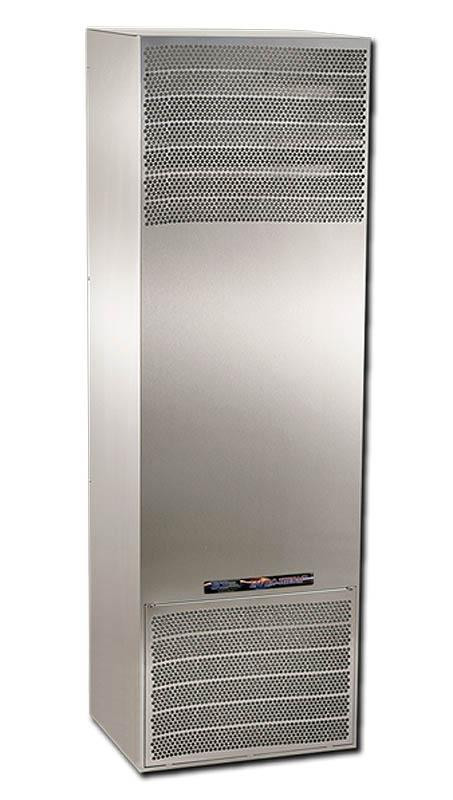

SCE-AC10200B460V3SS6

Features Include:

• Rated Operating Voltage / Frequency: 400/460 V - 50/60 Hz 3~
• Rated Current @ 95°F/95°F: 2.3 A
• Starting Current: 8.1 A
• Max. Current: 3.5 A
• Power Consumption @ 95°F / 95°F: 1.34 kW
• Max. Power Consumption: 1.66 kW
• Cooling Capacity @ 95°F / 95°F/: 10200 BTU (2989 Watts)
• Cooling Capacity @ 131°F / 131°F: 10891 BTU (3191 Watts)
• Heating Capacity: 1500 W
• Compressor: Rotary Compressor
• Refrigerant: R134a
• Refrigerant Charge: 29.00 oz
• Max. Pressure: 420 psig
• Operating Temperature Range: -4°F - 131°F

Housing Material:

• Mild Steel, Powder Coated
• SS: Stainless Steel AISI 304
• SS6: Stainless Steel AISI 316

Need More Information?

• Saginaw Enviro-Therm AC10200 460V A/C User Manual
