$50.25
SCE-AC1000B120VSS6
$3,566.75

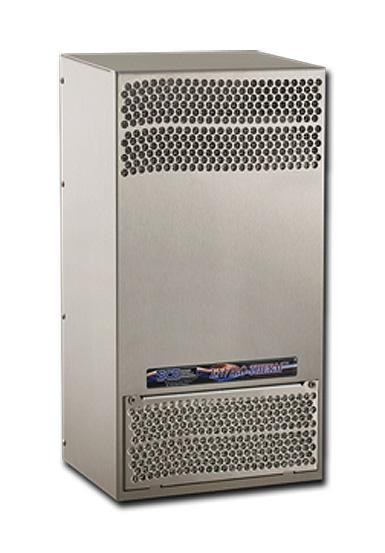

Air Conditioner, 1000 BTU, Hr. 120 Volt, IS20, 18.9x10x7.5", NEMA/UL 3R, 4, 4X, 12, IP56
- Weight:
- 42.00 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw offers just about every type of enclosure; steel, stainless steel, non-metallic and custom! All NEMA ratings and styles are available as well as a complete line of accessories.
Saginaw enclosures have been designed and manufactured in Michigan since 1963.
Features Include:
- Rated Operating Voltage / Frequency: 120 V - 60 Hz
- Rated Current @ 95°F/95°F: 2.4 A
- Starting Current: 8 A
- Max. Current: 2.9 A
- Power Consumption @ 95°F / 95°F: 270 W
- Max. Power Consumption: 330 W
- Cooling Capacity @ 95°F / 95°F/: 1000 BTU (293 Watts)
- Cooling Capacity @ 131°F / 131°F: 875 BTU (256 Watts)
- Heating Capacity: 150 W
- Compressor: Reciprocating Compressor
- Refrigerant: R134a
- Refrigerant Charge: 4.00 oz
- Max. Pressure: 428 / 88 psig
- Operating Temperature Range: -4°F - 140°F
Housing Material:
- Mild Steel, Powder Coated
- SS: Stainless Steel AISI 304
- SS6: Stainless Steel AISI 316
