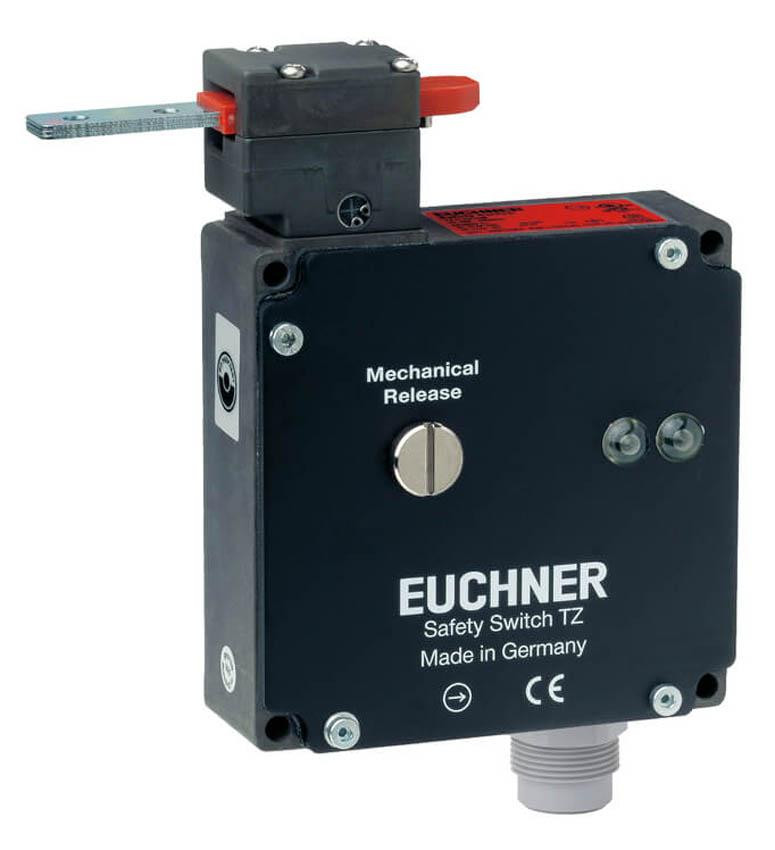

049102

Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Features Include:

• Thermal rated current Ith: 4 A
• Rated insulation voltage Ui: 250 V
• Rated impulse withstand voltage Uimp: 2.5 kV
• Utilization category: AC-15 4A 230V / DC-13 4A 24V
• Solenoid operating voltage: AC/DC 24 V -15% - +10%
• Switching voltage: Min. at 10mA, 12 V
• Switching current : Min. at 24V 1 mA
• Connection rating: 10 W
• Connection: 1 x Plug connector SR6
• LED indicator: Operating voltage corresponds to the solenoid voltage
• Housing material: Housing: Anodized die-cast alloy
• Contact material: Silver alloy, gold flashed
• Ambient temperature: -25 - 80 °C
• Degree of protection: IP65
• Switching principle: Slow-action switching contact
• Installation orientation: Any
• Number of door position positively driven contacts: 1
• Number of door position NO contacts: 1
• Number of guard lock monitoring positively driven contacts:1
• Number of guard lock monitoring NO contacts: 1
• Approach direction: Actuating head on the right A
• Approach speed: max.20 m/min
• Actuation frequency: max.1200 1/h
• Guard locking principle: Closed-circuit current principle
• Locking force Fmax: 2000 N
• Locking force FZh: 1500 N
• Lid: Black
• LED indicator: Operating voltage corresponds to the solenoid voltage
