077149
Alt: 77149, TZ2RE024RC18VAB-C1803
$1,175.08

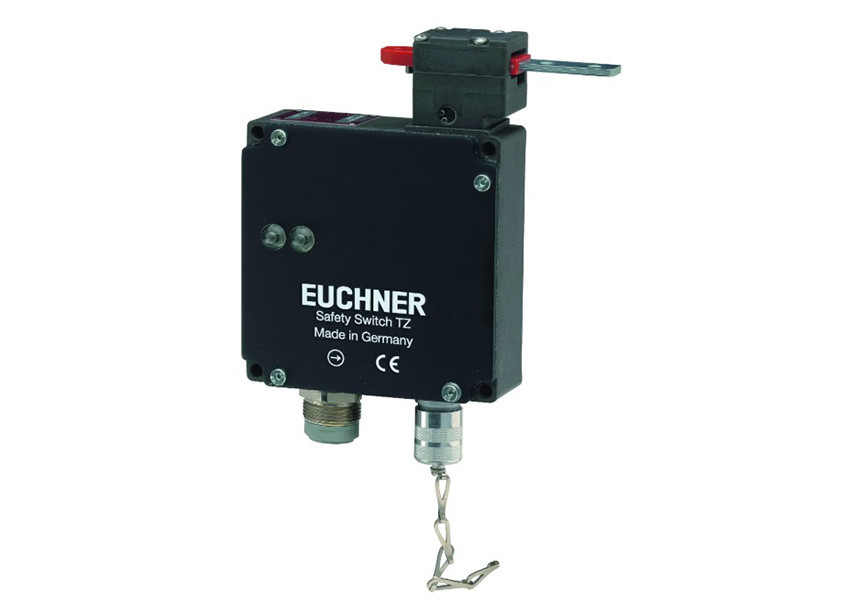

Safety Switch, TZ2RE024RC18VAB-C1803
- Weight:
- 2.87 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Thermal rated current Ith: 4 A
- Rated insulation voltage Ui: 110 V
- Rated impulse withstand voltage Uimp: 1.5 kV
- Utilization category: AC-15 4A 110V / DC-13 4A 24V
- Solenoid operating voltage: AC/DC 24 V -15% - +10%
- Switching voltage: Min. at 10mA, 12 V
- Switching current : Min. at 24V 1 mA
- Connection rating: 10 W
- Connection: 1 x Plug connector RC18
- LED indicator: Operating voltage corresponds to the solenoid voltage
- Housing material: Housing: Anodized die-cast alloy
- Contact material: Silver alloy, gold flashed
- Ambient temperature: -25 - 80 °C
- Degree of protection: IP65
- Switching principle: Slow-action switching contact
- Installation orientation: Any
- Number of door position positively driven contacts: 2
- Number of door position NO contacts: 1
- Number of guard lock monitoring positively driven contacts: 2
- Number of guard lock monitoring NO contacts: 1
- Approach direction: Actuating head on the right A
- Approach speed: max.20 m/min
- Actuation frequency: max.1200 1/h
- Guard locking principle: Closed-circuit current principle
- Locking force Fmax: 2000 N
- Locking force FZh: 1500 N
- Lid: Black
- LED indicator: Operating voltage corresponds to the solenoid voltage
