093103
Alt: 93103, TZ2LE024RC18VAB-C1828
$1,066.60

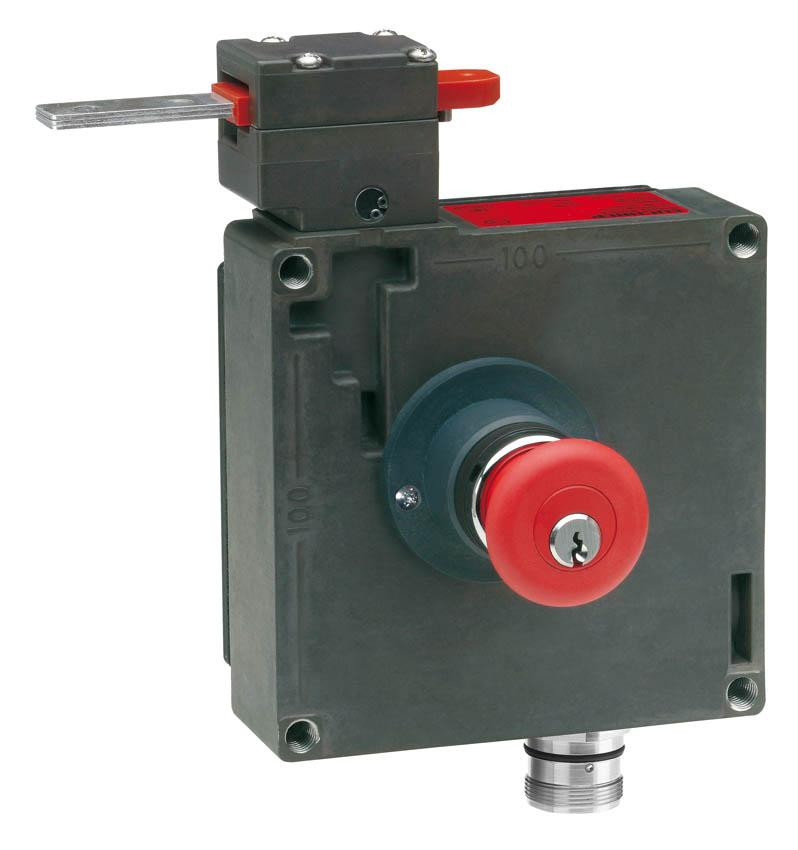

Safety Switch, TZ2LE024RC18VAB-C1828
- Weight:
- 3.15 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Thermal rated current Ith: 4 A
- Utilization category acc. to EN 60947-5-1: AC-15 4A 110V, DC-13 4A 24V
- Solenoid operating voltage: AC/DC 24 V -15% - +10%
- Rated insulation voltage Ui: 110 V
- Rated impulse withstand voltage Uimp: 1,5 kV
- Switching voltage: Min. at 10mA 12 V
- Switching current: Min. at 24V 1 mA
- Connection rating: 10 W
- LED indicator: Operating voltage corresponds to the solenoid voltage
- Housing material: Housing Anodized die-cast alloy
- Contact material: Silver alloy, gold flashed
- Switching principle: Slow-action switching contact
- Installation orientation Any
- Number of door position positively driven contacts: 3
- Number of door position NO contacts: 1
- Number of guard lock monitoring positively driven contacts: 2
- Number of guard lock monitoring NO contacts: 2
- Connection: 1 x Plug connector RC18
Technical Information:
