094423
Euchner

094423

Alt: 94423, TZ1RE024SEM4AS1-C1815

$1,091.48

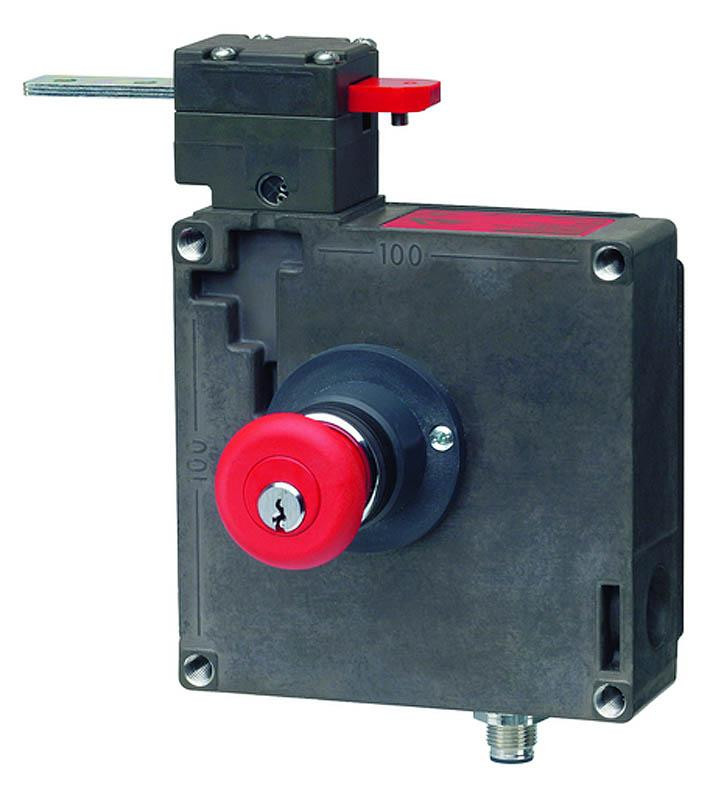

Safety Switch, TZ1RE024SEM4AS1-C1815

Weight:
3.03 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.

Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Features Include:

  • ASI auxiliary current: 350 mA
  • ASI auxiliary voltage: IEC 60742, PELV 24 V -15% - +10%
  • ASI operating current: max. 45 mA
  • ASI slave type: according to ASI specification 2.1 ID code: B, according to ASI specification 2.1 EA code: 7
  • ASI voltage: 22.5 - 30 - 31.6 V
  • Actuating force: 35 N
  • Actuation frequency: max. 1200 1/h
  • Approach direction: Actuating head on the right A
  • Approach speed: max. 20 m/min
  • Connection: 1 x Plug connector M12
  • Extraction force: 30 N
  • Guard locking principle: Closed-circuit current principle
