Euchner

089469

Alt: 89469, TZ1RE024MVAB-C1828

$943.07

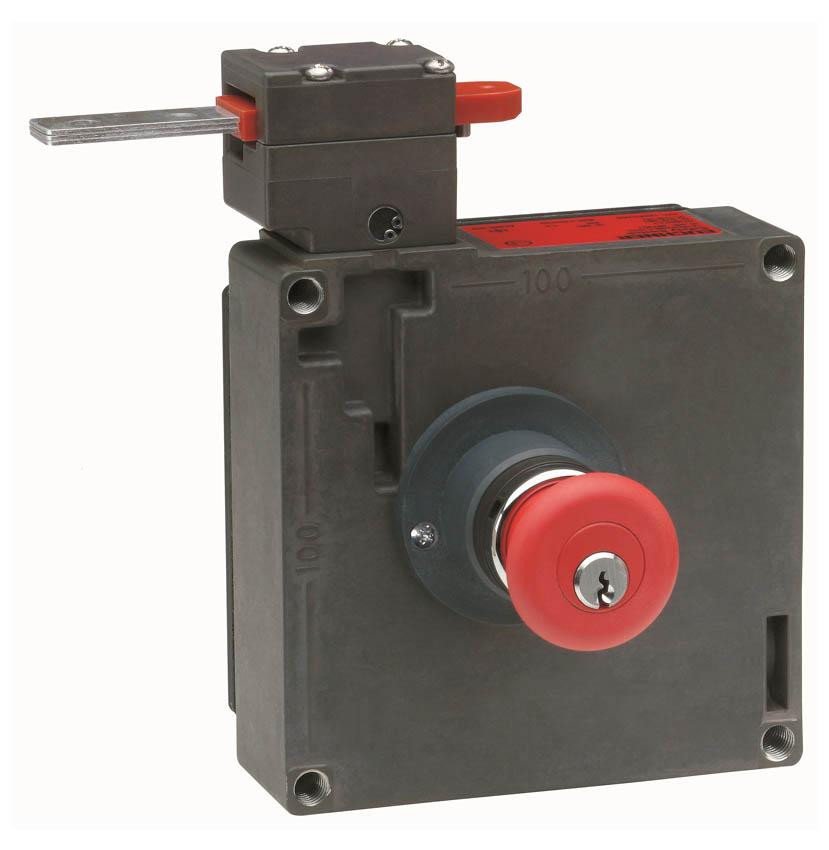

Safety Switch, TZ1RE024MVAB-C1828

Minimum Purchase:
1 unit
Adding to cart… The item has been added
089469
089469
Description

Features Include:

  • Thermal rated current Ith: 4 A
  • Utilization category acc. to EN 60947-5-1: AC-15 4A 230V, DC-13 4A 24V
  • Solenoid operating voltage: AC/DC 24 V -15% - +10%
  • Rated insulation voltage Ui: 250 V
  • Rated impulse withstand voltage Uimp: 2,5 kV
  • Switching voltage: Min. at 10mA 12 V
  • Switching current: Min. at 24V 1 mA
  • Connection rating: 10 W
  • LED indicator: Operating voltage corresponds to the solenoid voltage
  • Housing material: Housing Anodized die-cast alloy
  • Contact material: Silver alloy, gold flashed
  • Switching principle: Slow-action switching contact
  • Installation orientation: Any
  • Number of door position positively driven contacts: 3
  • Number of door position NO contacts: 1
  • Number of guard lock monitoring positively driven contacts: 2
  • Number of guard lock monitoring NO contacts: 2
  • Connection: 1 x M20 x 1.5
