096901
Alt: 96901, TZ1RE024M-C1816
$865.75

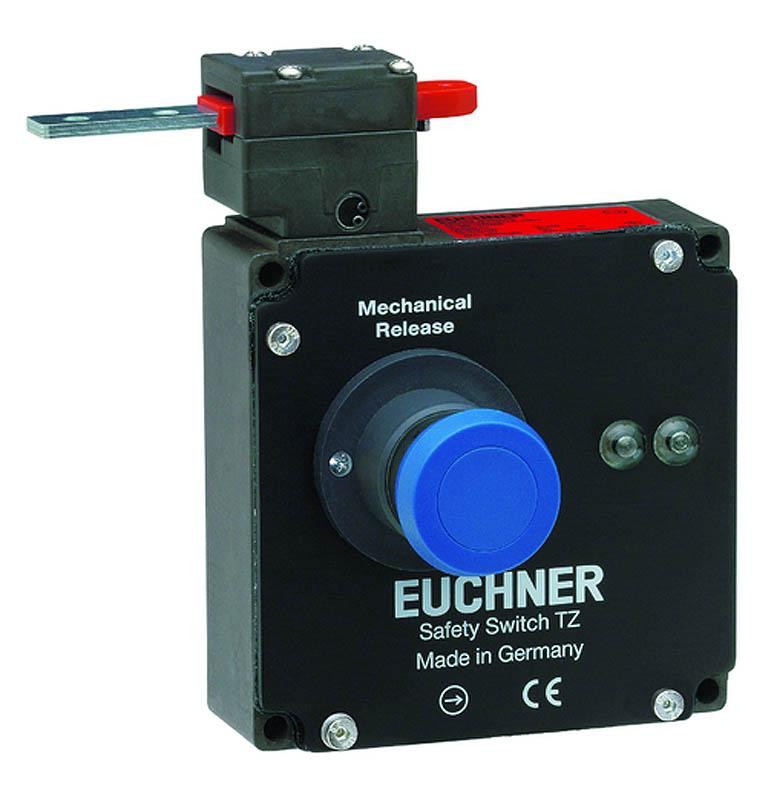

Safety Switch, TZ1RE024M-C1816
- Weight:
- 2.88 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Connection cross-section: 0.34 - 1.5 mm²
- Power consumption: 10 W
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Solenoid operating voltage: AC/DC 24 V -15% - +10%
- Switching current: min. at 24 V 1 mA
- Switching voltage: min. at 10 mA 12 V
- Connection: 1 x M20 x 1.5
- Material: Housing Anodized die-cast alloy, Contact Silver alloy, gold flashed
- Number of door position NO contacts: 1
- Number of door position positively driven contacts: 1
- Number of guard lock monitoring NO contacts: 1
- Number of guard lock monitoring positively driven contacts: 1
- Retention force: 10 N
- Switching principle: Slow-action switching contact
- Release on the front with pushbutton
- Two LED displays, red and green
- Actuating head fitted right
Technical Information:
