Euchner

086140

Alt: 86140, TZ1LE024SEM4AS1

$824.15

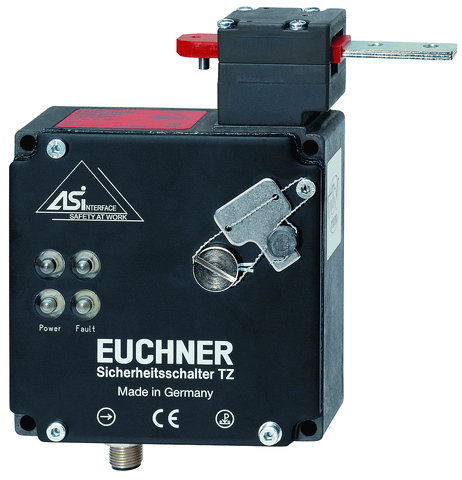

Safety Switch, TZ1LE024SEM4AS1

Minimum Purchase:
1 unit
Adding to cart… The item has been added
086140
086140
Description

Features Include:

  • ASI auxiliary current: 350 mA
  • ASI auxiliary voltage: (IEC 60742, PELV): 24 V -15% ... +10%
  • ASI data in according to AS-i Safety at Work: D0, D1, D2, D3
  • ASI data out: LED red D1, Guard locking solenoid D0, LED green D2
  • ASI LED: LED green: Power, LED red: Fault
  • ASI operating current: max. 45 mA
  • ASI slave type: according to ASI specification 2.1: EA code: 7 / according to ASI specification 2.1: ID code: B
  • ASI voltage: 22.5 - 30 - 31.6 V
  • Actuating force: 35 N
  • Actuation frequency: max. 1200 1/h
  • Ambient temperature: -25 - +55 °C
  • Approach direction: Actuating head left C
  • Approach speed: max. 20 m/min
  • Connection: 1 x Plug connector M12
  • Degree of protection: IP67
  • Extraction force: 30 N
  • Guard locking principle: Closed-circuit current principle
  • Insertion depth: 52 mm
  • Installation orientation: any
  • Contact: Silver alloy, gold flashed
  • Housing Anodized die-cast alloy
  • Mechanical life: 1 x 10⁶
  • Number of door position positively driven contacts (according to AS-i Safety at Work): 1
  • Number of guard lock monitoring positively driven contacts (according to AS-i Safety at Work): 1 D2,D3
  • Retention force: 10 N
  • Switching principle: Slow-action switching contact
