082050
Alt: 82050, TZ1LE024M
$698.96

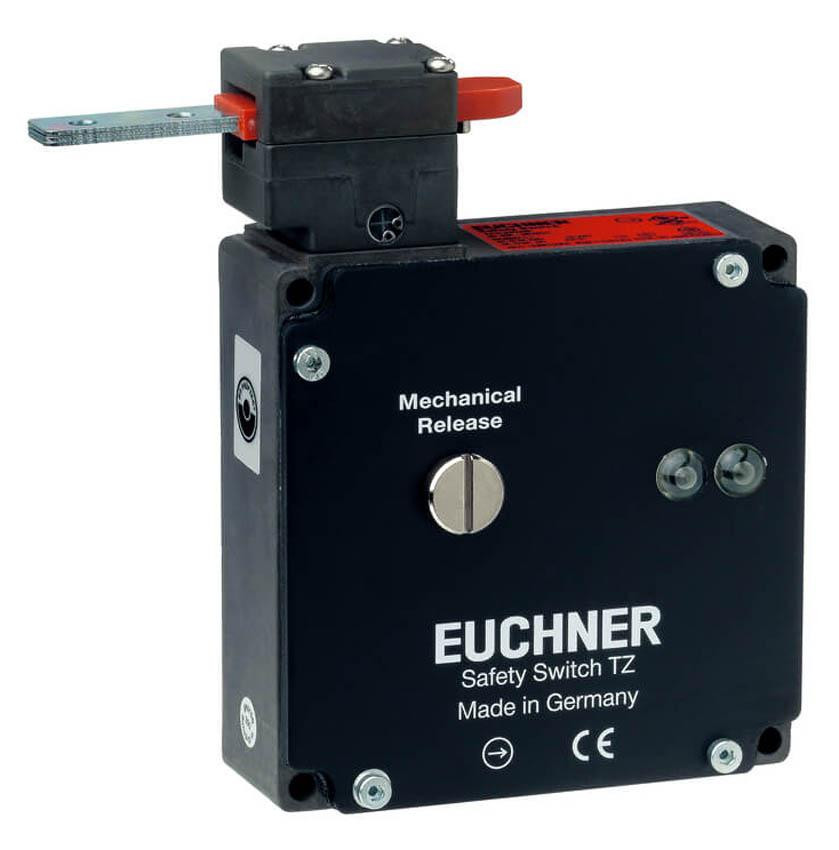

Safety Switch, TZ1LE024M
- Weight:
- 2.62 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Thermal rated current Ith: 4 A
- Utilization category acc. to EN 60947-5-1: AC-15: 4A 230V / DC-13: 4A 24V
- Solenoid operating voltage: AC/DC 24 V -15% - +10%
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Switching voltage: Min. at 10mA, 12 V
- Switching current : Min. at 24V 1 mA
- Connection rating: 10 W
- Connection: 1 x M20 x 1.5
- LED indicator: Operating voltage corresponds to the solenoid voltage
- Housing material: Housing: Anodized die-cast alloy
- Contact material: Silver alloy, gold flashed
- Ambient temperature: -25 - 80 °C
- Degree of protection: IP67
- Switching principle: Slow-action switching contact
- Installation orientation: Any
- Number of door position positively driven contacts: 1
- Number of door position NO contacts: 1
- Number of guard lock monitoring positively driven contacts:1
- Number of guard lock monitoring NO contacts: 1
- Approach speed: max.20 m/min
- Actuation frequency: max.1200 1/h
- Guard locking principle: Closed-circuit current principle
- Locking force Fmax: 2000 N
- Locking force FZh: 1500 N
- Retention force: 10 N
- Extraction force: 30 N
- Actuating force: 35 N
- Insertion depth: 52 mm
- Lid: Black
- LED indicator: Operating voltage corresponds to the solenoid voltage
Technical Information:
