101182772
Alt: AZM170SK-02/01ZRK-2197 24 VAC/DC, AZM 170SK-02/01ZRK-2197 24VAC/DC
$571.00
Safety Switch, Solenoid, Screw, 24 VAC/DC
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description

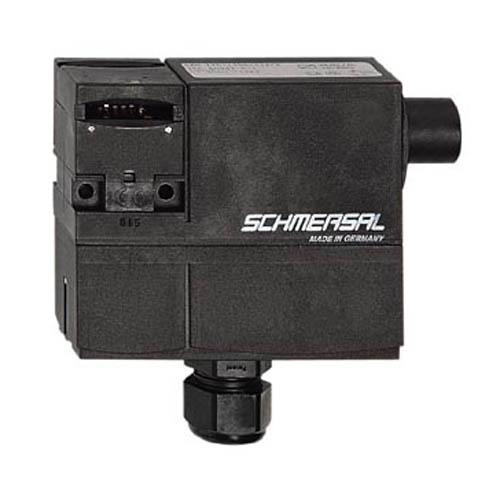

Schmersal AZM 170 series:
- Solenoid safety interlock switch
- Thermoplastic enclosure
- Double-insulated
- Compact: 90mm x 84mm x 30mm
- Protection against incorrect locking
- High holding force
- Available in 5N or 30N latching force
Specifications
Alternate Part Number
AZM170SK-02/01ZRK-2197 24 VAC/DC, AZM 170SK-02/01ZRK-2197 24VAC/DC
Material
See Spec
Pushbutton Type
See Spec
Series
AZM (AZM 170) Series
Size
See Spec
Type of Safety Switch
Safety Interlock
Warranty
18 Months
Weight
1
Features Include:
- Thermoplastic enclosure
- Double-insulated
- Compact design

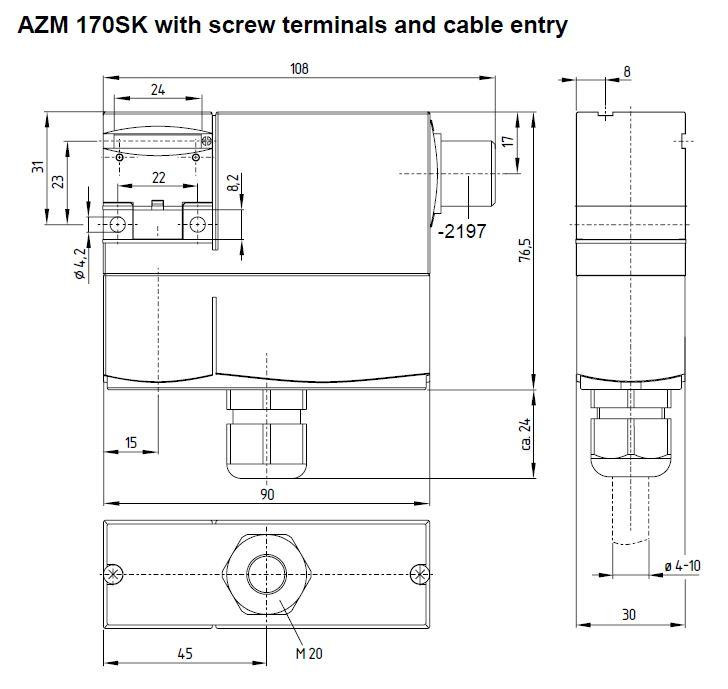

- Dimensions: 90 mm x 84 mm x 30 mm
- 1 Cable entry M 20 x 1.5
- Interlock with protection against incorrect locking.
- Long life
- High holding force
- IDC method of termination
- Manual release
- Connector: M12, 4-pole
- Housing Material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Ambient Temperature: -25° - +60°C
