131029951
Alt: TZMC (Was # 101029951)
$396.00
Safety Interlock Switch, Solenoid Locking, 2NO/1NC, 24VDC
- Weight:
- 1.10 LBS
- Minimum Purchase:
- 1 unit
Description

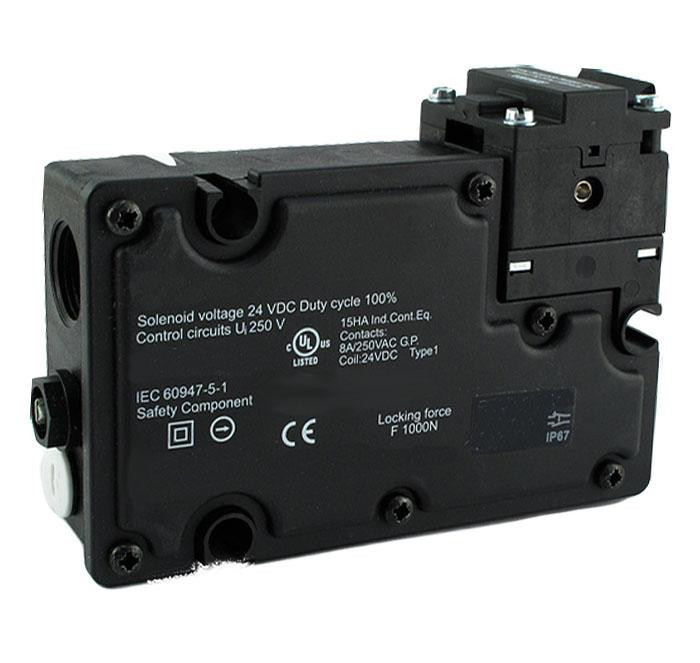

Safety Switch, Solenoid Interlock, 2NO/1NC, 24VDC
Features Include:
- Power Consumption: max. 8.5 W
- Ambient Temperature: 0 °C - + 50 ºC
- Enclosure: glass-fibre reinforced thermoplastic, self-extinguishing
- Actuator and locking bolt: inc-plated steel/zinc diecast
- Contact Type: Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
- Switching System: IEC 60947-5-1 slow action, NC contact with positive break
- Connection: Self-opening screw terminals
- Cable Selection: max. 2.5 mm² (incl. conductor ferrules)
- Cable Entry: 1 x M20 x 1. Manual release, emergency exit or emergency release
- Long life
- Double insulated X
- Holding force 1500 N
- Wiring compartment
- Power to unlock/power to lock principle
- 1 cable entry M20 x 1.5
- Actuating play 11 mm in direction of actuation
- With LED on request
