R1.320.4220.0
Wieland

R1.320.4220.0

Alt: SMS 4220

$67.38

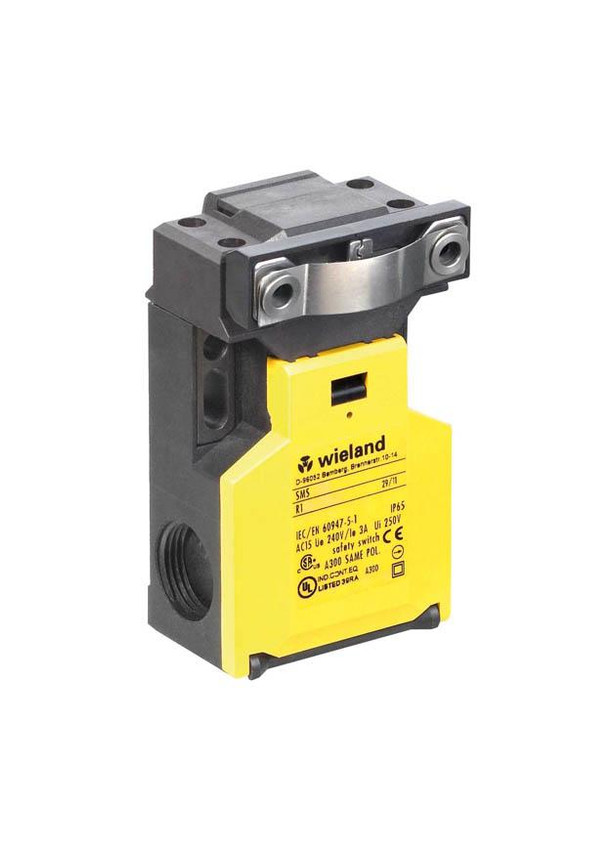

Safety Switch, Separate Actuator Needed, 2NC Contacts, 30N Extraction Force

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Safety Switch, Separate Actuator, 2NC Contacts, 30N Extraction Force

Learn more about Wieland products here!

  • Rated insulation voltage Ui: 250 V
  • Rated impulse voltage: 2.5 kV
  • Utility category: 3 A (AC-15 at 250V AC) / 10 A (DC-13 at 24V DC)
  • Short-circuit protective device: 6 A class gG fuse, fuse integral < 100 A²s
  • Housing material: Thermoplastic GV (UL94-V0)
  • Separate actuator: Yes
  • Min. ambient temperature: -30 °C
  • Max. ambient temperature: 80 °C
  • Mechanical life: 106 switching cycles
  • Connection type: Screw connection
  • Max. conductor cross section (flex., stranded): 0.5 mm²
  • Max. conductor cross section (flex., stranded): 1.5 mm²
  • Cable entry: 3 x M20x1,5
  • Weight: 0.15 kg
  • Degree of protection (IP): IP65
