090742
Alt: 90742, NZ2VZ-538ESEM4AS1
$471.44

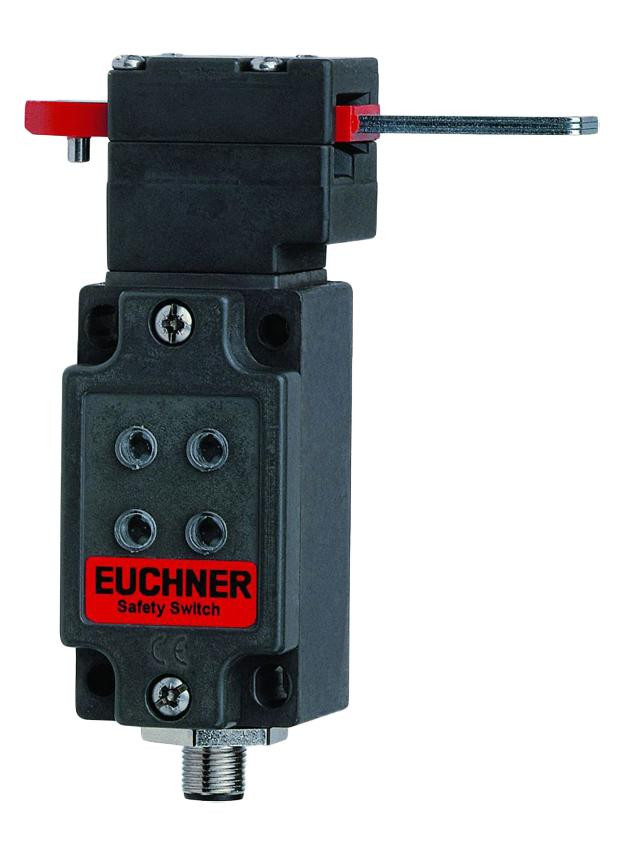

Safety Switch, NZ2VZ-538ESEM4AS1
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- ASI data in according to AS-i Safety at Work: D0, D1, D2, D3
- ASI data out: LED green D2 | LED red D1
- ASI LED: LED green Power | LED red Fault
- ASI operating current: max. 45 mA
- ASI slave type: according to ASI specification 2.1 EA code: 7 | according to ASI specification 2.1 ID code: B
- ASI voltage: 22.5 - 30 - 31.6 V
- Actuating force 35 N
- Actuation frequency: max. 1200 1/h
- Ambient temperature: -25 - +80 °C
- Approach direction: Actuating head left A
- Approach speed: max. 20 m/min
- Connection: 1 x Plug connector M12
- Degree of protection: IP67
- Extraction force: 35 N
- Insertion depth: 52 mm
- Installation orientation: any
- Housing: Anodized die-cast alloy
- Contact: Silver alloy, gold flashed
- Mechanical life: 2 x 10⁶
- Number of door position positively driven contacts according to AS-i Safety at Work: 2
- Retention force: 8 N
- Switching principle: Slow-action switching contact
