071200
Alt: 71200, NZ2VZ-538EC1701
$240.03

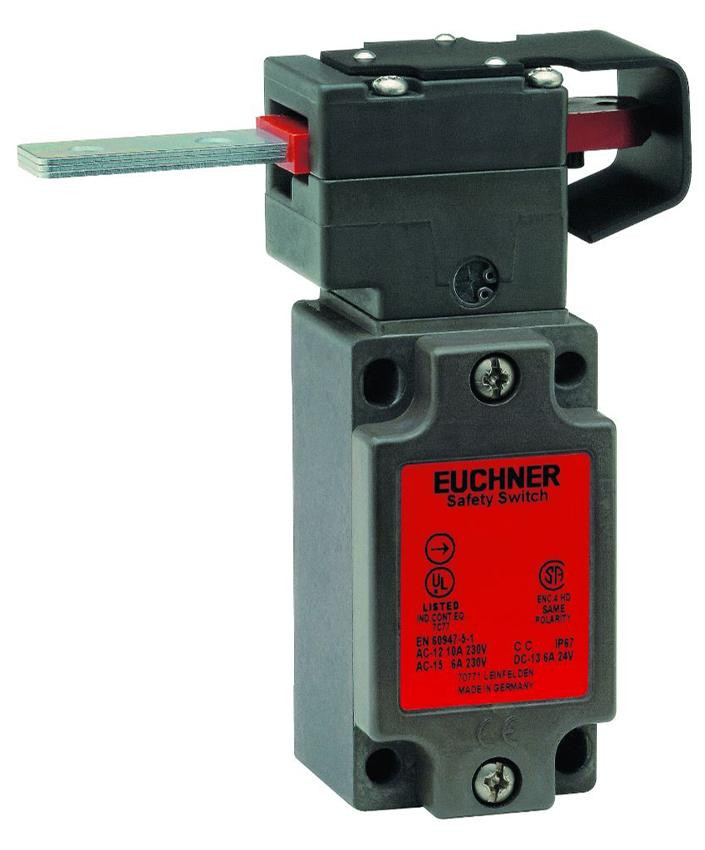

Safety Switch, NZ2VZ-538EC1701
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Connection cross-section: 0.34 - 1.5 mm²
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: AC/DC 250 V
- Short circuit protection according to IEC 60269-1: 4A gG
- Switching current min. at 24 V: 1 mA
- Switching voltage: 12 V
- Thermal rated current Ith: 4 A
- Utilization category: AC-15 4A 230V | DC-13 4A 24V
- Actuating force: 35 N
- Actuation frequency: max. 1200 1/h
- Ambient temperature: -25 - +80 °C
- Approach direction: A
- Approach speed: max. 20 m/min
- Connection: 1 x Plug connector C16-1
- Degree of protection: IP67
- Extraction force: 35 N
- Insertion depth: 52 mm
- Installation orientation: any
- Housing: Anodized die-cast alloy
- Contact: Silver alloy, gold flashed
- Mechanical life: 2 x 10⁶
- Number of door position positively driven contacts: 2
- Retention force: 8 N
- Solenoid alignment: 3
- Switching principle: Slow-action switching contact
