074473

074473

Alt: 74473, NZ2VZ-2131E3VSE04

$883.18

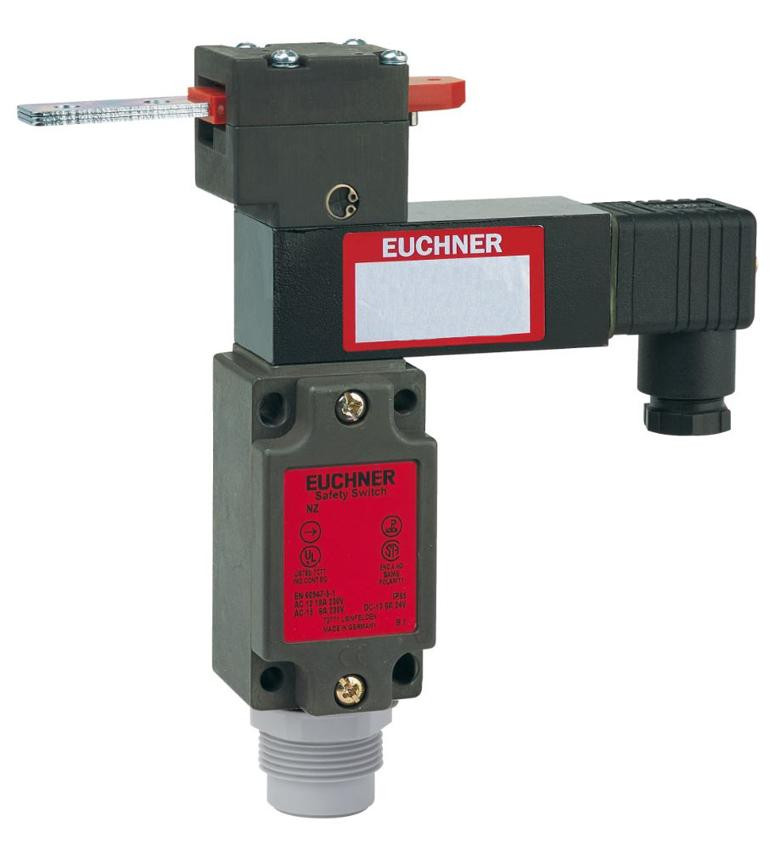

Safety Switch, NZ2VZ-2131E3VSE04

Weight:
1.82 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.

Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Features Include:

  • Rated impulse withstand voltage Uimp: 1.5 kV
  • Rated insulation voltage Ui: AC/DC 50 V
  • Short circuit protection according to IEC 60269-1: 4A gG
  • Solenoid operating voltage: DC 24 V -15% - 10%
  • Switching current min. at 24 V: 1 mA
  • Switching voltage: min. at 10 mA 12 V
  • Thermal rated current Ith: 4 A
  • Utilization category: AC-15 4A 50V | DC-13 4A 24V
  • Actuating force: 45 N
  • Actuation frequency: max. 1200 1/h
  • Ambient temperature: -25 - +80 °C
  • Approach direction: A
  • Approach speed: max. 20 m/min
  • Connection: 1 x Plug connector SR11
  • Degree of protection: IP65
  • Extraction force: 40 N
  • Guard locking principle: Open-circuit current principle
  • Insertion depth: 52 mm
  • Installation orientation: any
  • Locking force Fmax: 2000 N
  • Locking force FZh: 1500 N
  • Housing: Anodized die-cast alloy
  • Contact: Silver alloy, gold flashed
  • Mechanical life: 2 x 10⁶
  • Number of door position NO contacts: 1
  • Number of door position positively driven contacts: 3
  • Retention force: 35 N
  • Solenoid alignment: 3
  • Switching principle: Slow-action switching contact
