R1.100.0229.0
Wieland

R1.100.0229.0

Alt: SMA 0229

$66.84

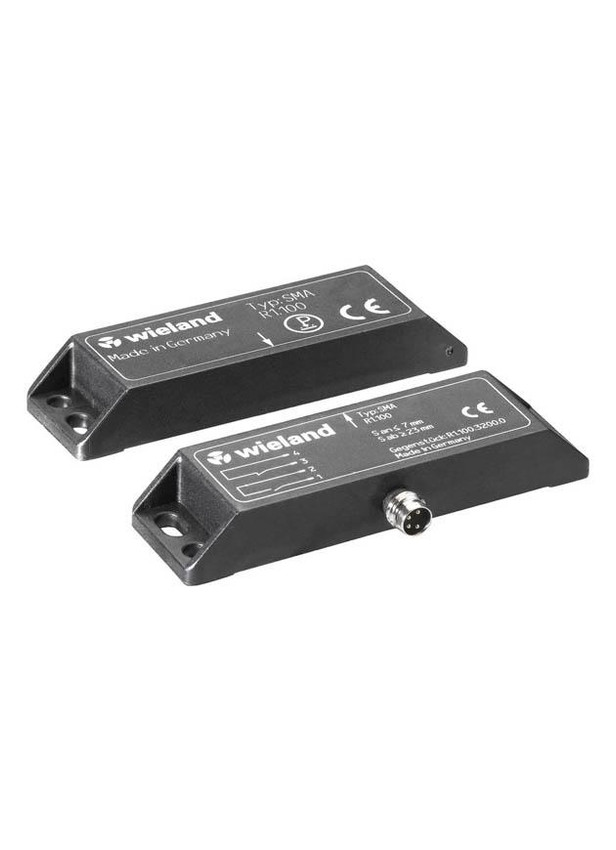

Safety Switch, Magnet, Manipulation Safe, 88x25x14mm, M8 Connection, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Safety switch and magnet, manipulation safe, rectangle-shaped design, dimensions LxWxH: 88x25x14mm, normally open / normally open contact, protection category: IP67, connetion: M8

Learn more about Wieland products here!

  • Suited for safety functions: Yes
  • Housing material: Plastic
  • Switching distance: 3 mm
  • Number of protected contact energized outputs: 2
  • Type of electric connection: Connector M8
  • Construction type housing: Cuboid
  • Protected switch distance ON: 7 mm
  • Protected switch distance OFF: 18 mm
  • Cross-/short circuit identification possible: Yes
  • Degree of protection (IP): IP67
  • Category according to EN ISO 13849-1: 4
  • Type of actuation: Magnet
  • Performance level acc. to EN ISO 13849-1: e
  • Max. output current at protected output: 200 mA
  • Min. output current: 5 mA
  • Min. rated supply voltage at DC: 5 V
  • Max. rated supply voltage at DC: 48 V
  • Dimensions
    • Depth: 25 mm
    • Width: 14 mm
    • Height: 88 mm
