101182066

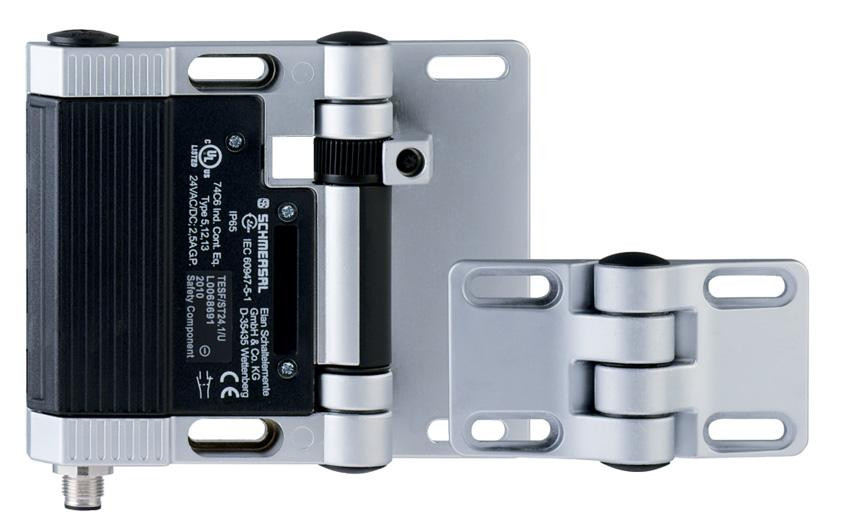

Safety Switch, Hinged, Metal Enclosure, 2NO/2NC, Screw Connection

Series Features Include:

• Connection: Screw terminals, cage clamps, connector
• Cable entry: 2 x M16
• Positive break angle: 10°
• Actuating speed: max. 180°/0.3 s
• Actuating frequency: max. 1200 operations/h
• Ambient temperature: −25 °C - +65 °C
• Rated operating current/voltage Ie/Ue: 2 A / 230 VAC; 1 A / 24 VDC
• Thermal test current Ithe: 2.5 A
• Max. rated operating voltage Ue max: 24 VDC, 230 VAC
• Connector ST24: 24 VAC
• Max. fuse rating: 2 A gG D-fuse
• Required short-circuit current: 1000 A

Technical Information:

• Schmersal TESF Hinge Safety Switch Operating Instructions
• Schmersal Automation Technology Catalog
