101216956

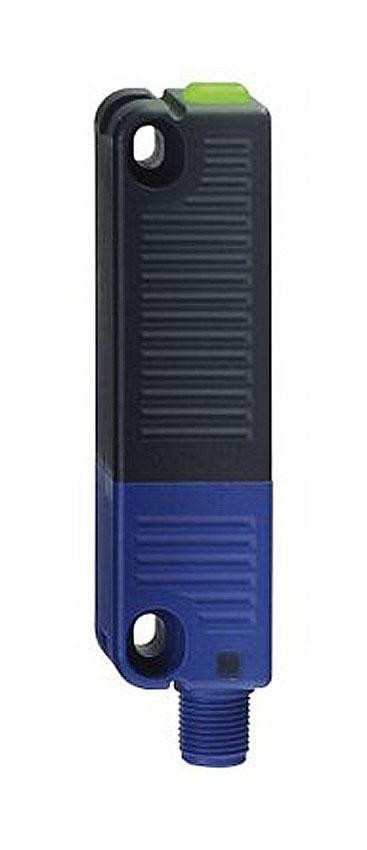

Safety sensor, Thermoplastic enclosure 27mm x 108.2mm x 35mm

Features Include:

• Thermoplastic enclosure
• RFID-technology for needs-based protection against tampering
• Misaligned actuation possible
• 27 mm x 108.2 mm x 35 mm
• High repeat accuracy of the switching points
• 2 short-circuit proof PNP safety outputs
• Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
• Repeated individual coding with RFID technology
• Coding level "High" according to ISO 14119
• 1 x connector socket M12, 8-pole
• Actuation from side
• Max. 31 sensors can be wired in series

Need More Information?

• Schmersal RSS 36-12-D-ST Datasheet
• Schmersal RSS 36 Series Safety Sensor Catalog
