101172154
Alt: SE-P40-2500, This Item is Replaced by Ordering 2 Pieces of 101172155

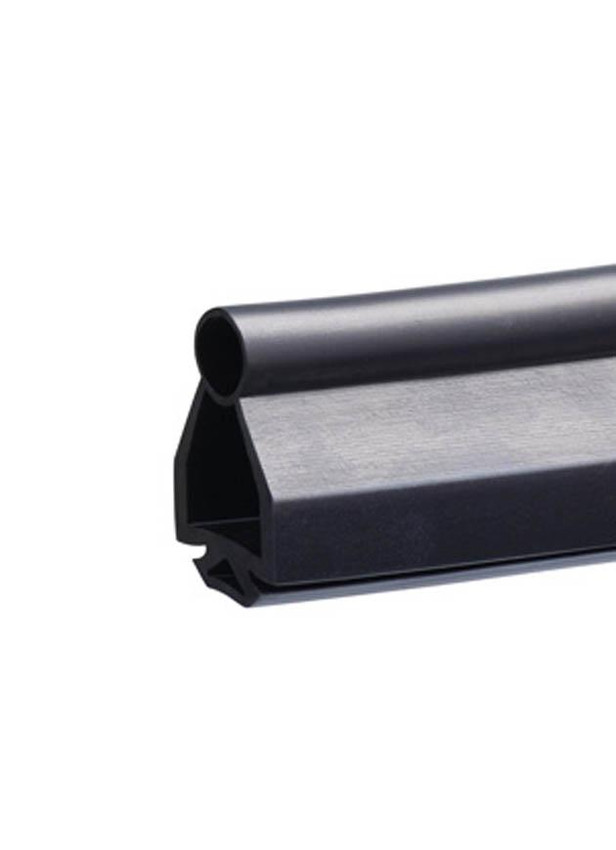

Safety, Rubber Profile, Use with SE-AL10/AL12, 25mm x 2500mm, (AL10 or AL12)
- Minimum Purchase:
- 1 unit
The Schmersal SE safety edge system is made up of a rubber profile, an aluminum mounting rail, a transmitter and receiver sensor set plus a compatible safety controller.
The Schmersal SE series of safety edges feature a high reflective internal rubber surface and a self-adjusting gain optical pair whose performance is uncompromised by slight bending … and predictable over the specified operating range.
These units are easy to assemble, no need for special skills or adhesives, for lengths of 400 mm to 10 m.
The self adjusting optical pair assure the same sensitivity and performance independent of chosen length. The mechanical design assures encapsulation of the transmitter and receiver ensuring reliable operation unaffected by environmental soiling.
The Schmersal SE series of safety edges is ideal wherever crushing or shearing points are to be safeguarded. Applications include guard doors, elevating platforms, rising stages, moving stock shelving, operating process tables, loading ramps, hoists or tipping equipment.
- You may not find all components listed online yet, please contact us for assistance
Parts required for a system include:
- Aluminum Profile (SE-ALXX-XXXX)
- Rubber Profile (SE-PXX-XXXX)
- Sensor Set (SE-SET) - SE-T transmitter and SE-R receiver
- Safety Controller (SE-XXXC)
- Accessories include:
- End caps (SE-ECXX) - 2 required
- SE-SC rubber profile shears
- SE-WA wiring aid
- SE-J1 junction box
- Dirt and moisture in the profile are to a great extent compensated
- Insensitive to environmental conditions
- Approx. 40 mm high
There are 6 steps to install a safety edge:
- 1. Cut aluminum rail to desired length and fasten in place
- 2. Cut the rubber profile to the desired length
- 3. Clip the rubber profile into the aluminum rail
- 4. Press the transmitter and receiver units into the ends of the rubber profile
- 5. Thread emitter or receiver cable through profile to desired cable exit end of rubber profile
- 6. Connect to the desired safety controller and you are ready!
