R1.188.2070.0
Wieland

R1.188.2070.0

Alt: Type SNV 4076SL-A

$473.68

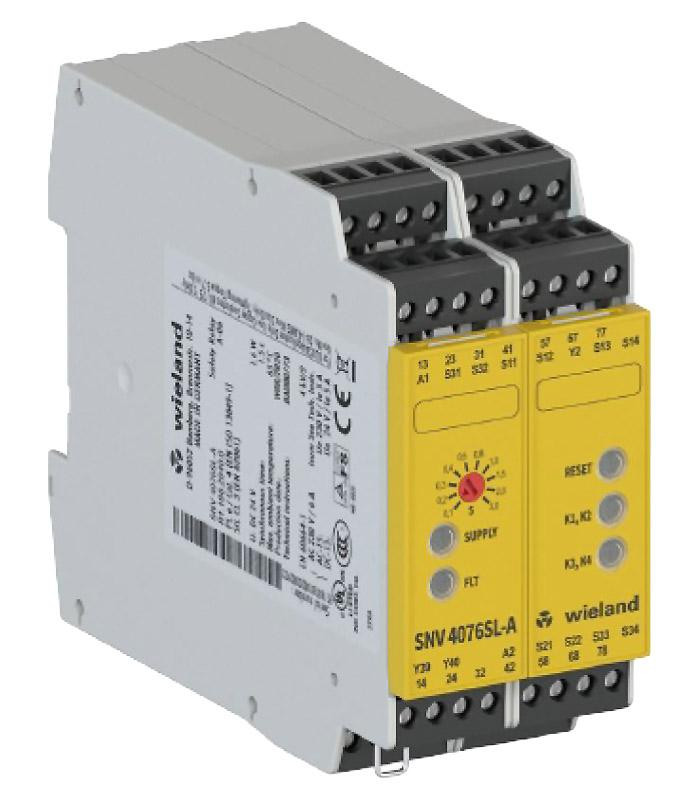

Safety Relay, SNV 4076SL-A, 30s Time Range, 24VDC, Screw Terminals, Pluggable, Drop In Replacement for Schneider # XPSATR11530P

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Wieland is known for their terminal blocks, however, they offer a wide range of automation products as well. This includes circuit protection, heavy duty connectors, programmable safety controllers and safety sensors.

Wieland is a family-owned German manufacturer that was founded in 1910.

Features Include:

  • Function display: 5 LED, green/red
  • Protection degree according to DIN EN 60529 (housing) IP40, (terminals) IP20
  • Ambient temperature: min. -25 °C, max. 55 °C
  • Detachable clamps yes
  • Type of electric connection: screw connection
  • Model: Basic device
  • Rated switching voltage, enabling AC: 230 V
  • Rated switching voltage, enabling DC: 24 V
  • Supply Circuit Nominal voltage UN: DC 24 V
  • Supply Circuit Rated consumption DC: 2.8 W
  • Dimensions (Depth x Width x Height): 114 mm x 45 mm x 96.5 mm
