R1.188.2010.0
Wieland

R1.188.2010.0

Alt: Type SNV 4063KL-C

$261.05

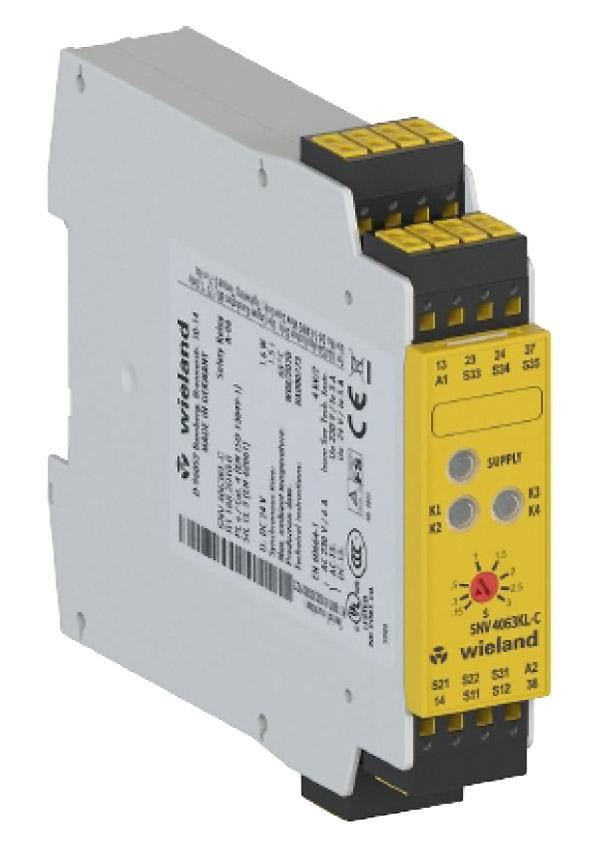

Safety Relay, SNV 4063KL-C, 3s Time Range, 24VDC, Spring Clamp, Push-In Terminals, Pluggable, Drop In Replacement for Schneider # XPSABV1133C, Sick # UE45-3S13D3_3

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Wieland is known for their terminal blocks, however, they offer a wide range of automation products as well. This includes circuit protection, heavy duty connectors, programmable safety controllers and safety sensors.

Wieland is a family-owned German manufacturer that was founded in 1910.

Features Include:

  • Function display: 3 LED, green
  • Protection degree according to DIN EN 60529 (housing) IP40, (terminals) IP20
  • Ambient temperature: min. -25 °C, max. 55 °C
  • Detachable clamps yes
  • Type of electric connection: spring clamp connection
  • Model: Basic device
  • Rated switching voltage, enabling AC: 230 V
  • Rated switching voltage, enabling DC: 24 V
  • Supply Circuit Nominal voltage UN: DC 24 V
  • Supply Circuit Rated consumption DC: 2.6 W
  • Dimensions (Depth x Width x Height): 114 mm x 22.5 mm x 106.5 mm
