547950
Alt: MSI-SR4B-01, Non-Cancellable / No Returns
$248.00

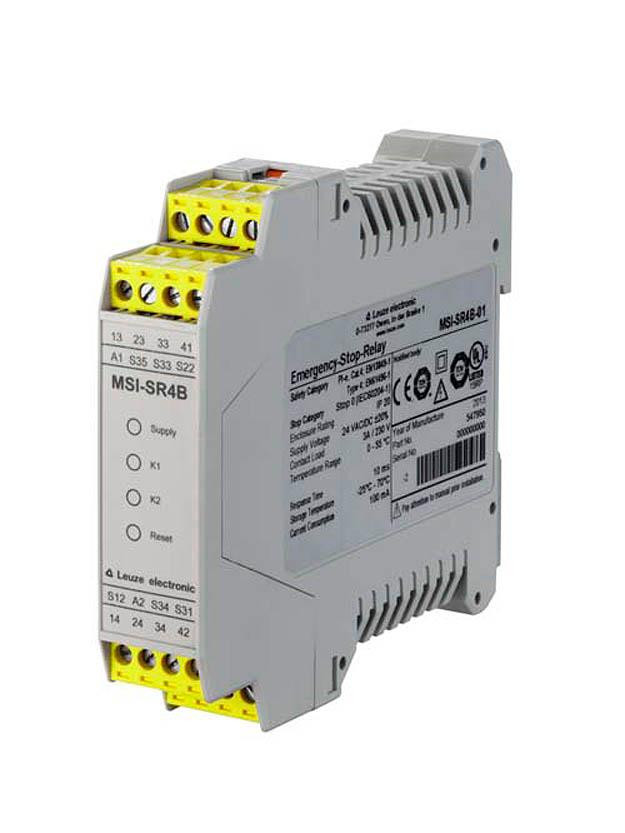

Safety Relay, 3NO/1NC, Automatic Start/Restart, Great for Using with MLC Light Curtains, NCNR
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!
Leuze has an extensive range of sensors including measuring, safety, identifications and switching.
Their U.S. Headquarters is located in Duluth, Georgia.
Features Include:
- Supply Voltage: 24 V, AC/DC, -20 - 20%
- Input Current, max.: 3 W
- Protective Circuit: Fuse on switching output, upstream
- Switching Frequency, max.: 3600 switching cycles/h
- Continuous current per current path, max.: 3 A
- Input Current, max.: 100 mA
- Dimensions (W x H x L): 22.5 mm x 99 mm x 114.1 mm
- Functions: Cross circuit monitoring, Automatic start/restart, Contactor monitoring (EDM), Start/restart interlock (RES), selectable
- Restart: Automatic, manual
