547958
Alt: MSI-TR1B-01, Non-Cancellable, No Returns
$293.00

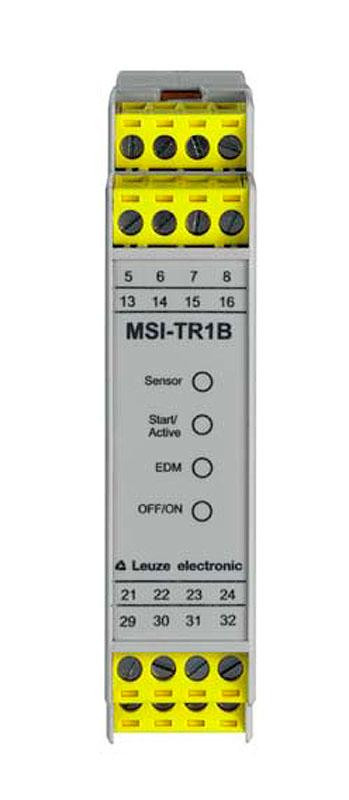

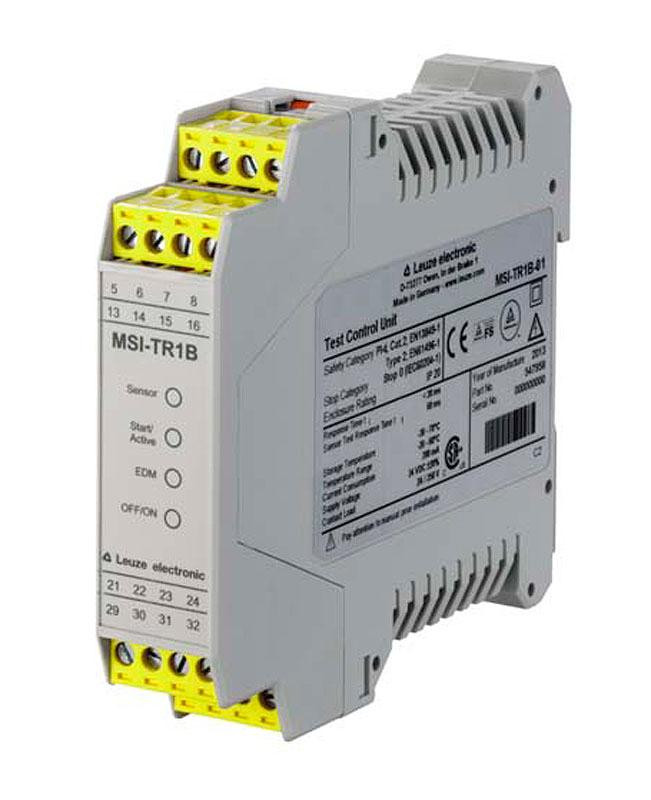

Safety Relay, 24VDC, Transistor, PNP, 4 Digital Switching Inputs, Relay, NO, IP40, Non-Cancellanle, No Returns
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!
Leuze has an extensive range of sensors including measuring, safety, identifications and switching.
Their U.S. Headquarters is located in Duluth, Georgia.
Features Include:
- Supply Voltage UB: 24 V , DC , -20 - 20 %
- Current Consumption, max.: 200 mA , Without external load
- Number of Digital Switching Inputs: 4 pieces
- Type: Digital Switching
- Switching Voltage High, min.: 18.2 V
- Switching Voltage Low, min.: 2.5 V
- Switching Voltage, typ.: 23 V
- Voltage Type: DC
- Dimensions (W x H x L): 22.5 mm x 99 mm x 114.1 mm
