101217092

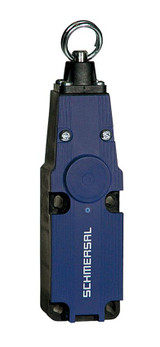

Safety Position Switch, Pull Wire, 1NO/1NC, Screw Connection, M20, Pull Wire

Features Include:

• Thermoplastic enclosure
• Vertical mounting
• Large wiring compartment
• Twisting of towing eye not possible
• Wire pull detection
• 2 Contacts
• 1 Cable entry M20
• Rated Impulse Withstand Voltage: 6
• Rated Insulation Voltage: 500
• Thermal Test Current: 10 A

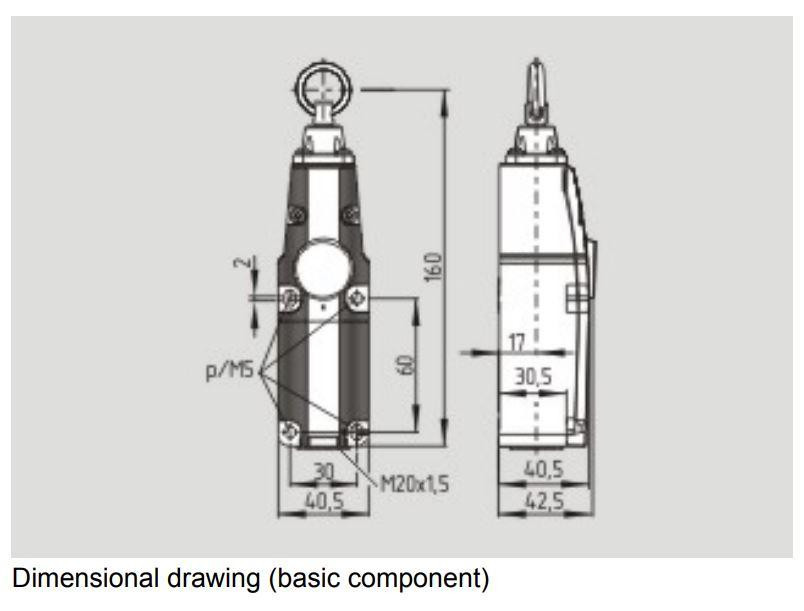

• Dimensions (W x H x D): 40.5 x 160 x 42.5 mm

Need More Information?

• Schmersal TQ700-11S Safety Position Switch Datasheet
• Schmersal TQ700-S Safety Position Switch Operating Instructions
