Pizzato
NS D4SE1SA2-F41
RFID Safety Switch with Electromagnet, Actuation without Contact Using RFID, Digitally Coded Actuator, SIL 3 and PL e with a Single Device, NS Series
$883.81
NS G4ST1SA10-F41
$870.86

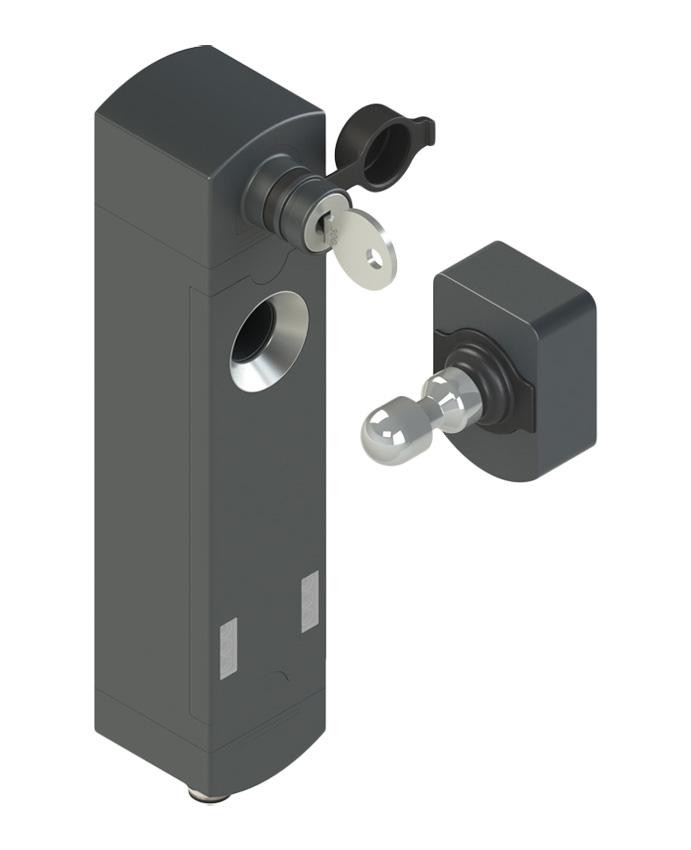

Safety Locking Switch with RFID Technology with Actuator
- Weight:
- 2.55 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.
They opened their US office and warehouse in 2018.
Features Include:
- Housing: Polymer housing
- Working method: G working method, locked actuator with de-energized solenoid - Mode 2: OS safety outputs active with closed protection
- Inputs and outputs: 2 safety inputs IS1-IS2, 2 safety outputs OS1-OS2, 1 signalling output O3: actuator inserted, 1 signalling output O4: actuator locked, 2 solenoid activation inputs IE1-IE2, 1 programming / reset input I3
- *Image is representative only
Technical Information:
Read more about Switches here!
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Pizzato
NS D4CE1SMK-F41
Safety Switch, (RFID), Locking, Complete with Actuator with High Coding Level VN NS-F41, Technopolymer Housing, M12 12-Pole Connector, IP67, NS Series
$623.27
$79.72
$669.17
Pizzato
NS E4ZZ1SMK-F41
Safety Locking Switch with RFID Technology, Technopolymer Housing, M12 Connector (12-Pole), without Actuator, IP67, NS Series
$668.98
$711.92
Pizzato
NS D4AZ1SA2
RFID Safety Switch with Electromagnet, Actuation without Contact Using RFID, Digitally Coded Actuator, SIL 3 and PL e with a Single Device, NS Series
$589.44
$711.92
Pizzato
NS D4AZ1DPK
RFID Safety Switch with Electromagnet, Actuation without Contact Using RFID, Digitally Coded Actuator, SIL 3 and PL e with a Single Device, NS Series
$562.80
