Leuze
50133860
Connection Cable, 5m, Connection 1: M12, Axial, Female, A-Coded, 5-Pin, Connection 2: Open End, Shielded, Use with Light Curtains, PUR Sheathing Material, NCNR
$49.00
MLC500T30-2250
Alt: 68000322, Non-Cancellable / No Returns
$2,196.00

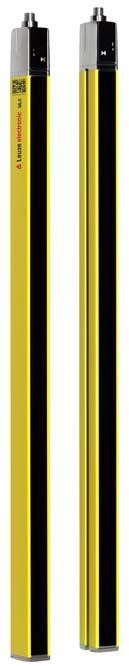

Safety Light Curtain Transmitter, 30mm Resolution, 2250mm Field Height, NCNR
- Weight:
- 4.92 LBS
- Minimum Purchase:
- 1 unit
Description

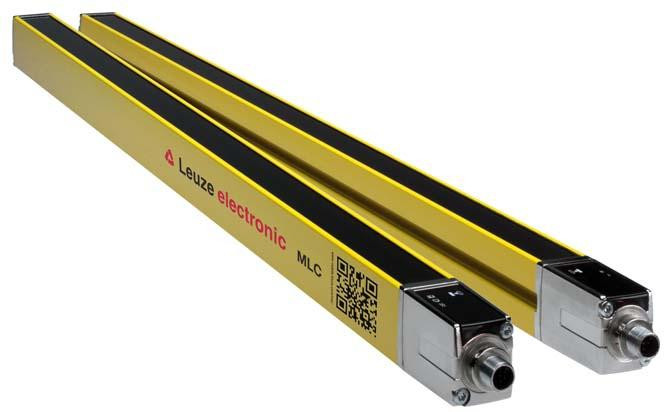

Our Leuze MLC 500 is a Type 4 basic safety light curtain that is orderable online with 30mm resolution and a protective field height from 150mm to 3000mm.
These safety light curtains can be used vertically as hand and finger protection, for access guarding and also horizontally as area protection.
With the flexible fastening concept and option for form-locking installation, these light towers can be universally used!
Please note you will need to order a transmitter and a receiver of the same resolution and the same protective field height. Please see accessories.
Marshall Wolf Automation is your authorized Leuze Electronic distributor! Please contact us for additional resolutions and features.
Learn more about Leuze's MLC 500 Series with their product video below!
Features Include:
- Basic MLC500 Type 4 safety light curtain
- Range reduction on the transmitter
- Selectable transmission channel
- LED indicators
- Automatic start/restart
- Addtional resolutions and models are available
- We currently show 30mm resolution and field height from 150mm to 3000mm
Supply voltage
- 24 V, DC, -20 - 20 %
Protective field height
- 2250 mm
Operating range
- 0 - 10 m
Dimension (W x H x L)
- 29 mm x 2316 mm x 35.4 mm
Type of fastening
- Groove mounting, Mounting on Device Column, Swivel mount, Mounting bracket
Housing material
- Metal, Aluminum
Thread size
- M12
Number of Pins
- 5-pins
Synchronization
- Optical between transmitter and receiver
Light source
- LED, Infrared
LED light wavelength
- 940 nm
