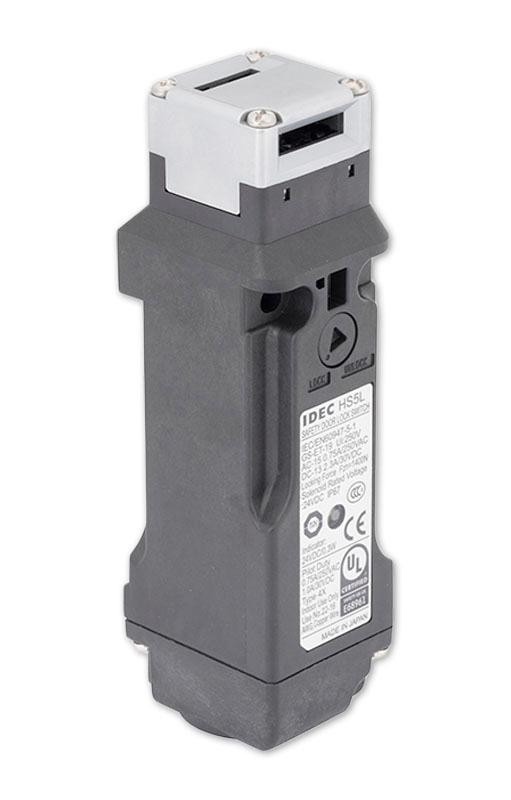

HS5L-VA44LM-G

HS5L interlock switches with solenoid are available in 2-contact or 4-contact models.

Two-contact models are great for food machines and injection molding machines.

Four-contact models are ideal for use on limited mounting spaces, including small doors.

• Size: 35x40x127mm
• 1400N locking strength
• This series replaced the HS5E series

Spring Lock:

• Automatically locks the actuator without power applied to the solenoid.
• After the machine stops, unlocking is completed by the solenoid, providing high safety features.
• Manual unlocking is possible in the event of power failure or maintenance using a manual unlocking key.
• Head removal detection circuitry (spring lock models only).

Solenoid Lock:

• The actuator is locked when energized.
• The actuator is unlocked when de-energized.
• Flexible locking function can be achieved, for an application where locking is not required and sudden stopping of a machine must be prevented.

Rear unlocking button means the door lock can be unlocked inside the barrier by a worker left inside a hazardous area.

Applications include cutting, grinding, mixing, packing, squeezing, baking and more!

Marshall Wolf Automation is your authorized IDEC distributor.

Features Include:

• Compact body: 35x40x127mm
• Retention Force: 1400N locking force
• Product Type: Spring Lock Safety Interlock
• Unlock Method: Apply Power
• Solenoid Voltage: 24 VDC
• Indicator Light: Green LED
• Conduit Port Size: M20
• Spring clamp terminals
• Gold plated contacts
• Head removal detection circuitry
• B10d: 2.0E+06
