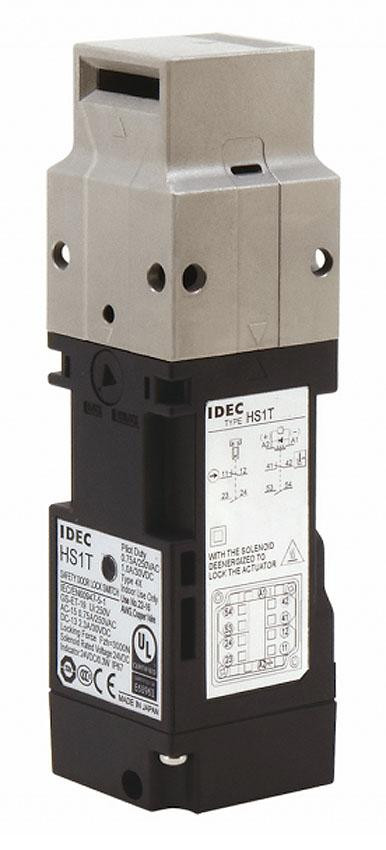

The IDEC HS1T series is a safety interlock switch that offers maximum locking force and compact packaging combined with the industry’s best strength-to-size ratio. This switch is ideal for safeguarding machinery and equipment and is a heavy duty, locking safety interlock switch.
These interlock switches provides safety, performance and cost advantages for equipment manufacturers, machinery builders, packaged system designers, robotics implementations and OEMs of all types.
This interlock switch delivers an industry-leading 5000N of locking force and meets the requirements of ISO 14119:203 for Lock Monitoring where both the status of the position and the locking function of a protective door can be monitored through the lock monitoring contact.
By using this interlock switch fewer on-board contacts are needed to achieve redundant safety circuits and additional monitoring circuits, reducing the amount of wiring on the device. Installers will also appreciate that the HS1T has multiple available cable entry ports, with faster and more reliable wiring connections made possible by spring clamp terminals.
These connections offer excellent vibration resistance, prevent wires from loosening and never need tightening.
Marshall Wolf Automation is your authorized IDEC distributor.
Features Include:
Retention Force: 5000N
Unlock Method: Remove Power
Rated Insulation Voltage (Ui): 250V (between LED, solenoid and grounding: 30V)
Rated Current: 2.5A
Solenoid Voltage: 24VDC
Indicator Light: Green
Conduit Port Size: M20
Impulse Withstand Voltage: 2.5kV (between LED, solenoid and grounding: 0.5kV)
Degree of Protection: IP67 (IEC60529) Type 4X Indoor Use Only
