Available Now! 601.9261.014
Available Now! (1 in stock)
Bernstein

601.9261.014

Alt: SHS-A1Z-KR 5

$390.25

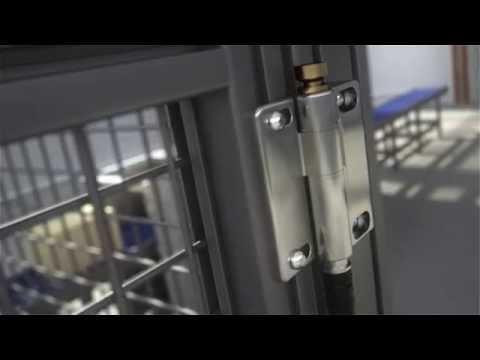

Safety Hinge Switch, 1NC, 230VAC/60VDC, 3A, IP67

Weight:
1.91 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.

If you do not see the part number you are looking for, please Contact Us, we can find what you need!

Features Include:

  • Rated Insulation Voltage: 250 V
  • Rated Impulse Withstand Voltage: 2.5 kV
  • Conv. Thermal Current: 3 A
  • Rated Operational Voltage: 230V AC/60 VDC
  • Short-Circuit Protection Device: Fuse 4 A gG
  • Contact Type: 1 NC

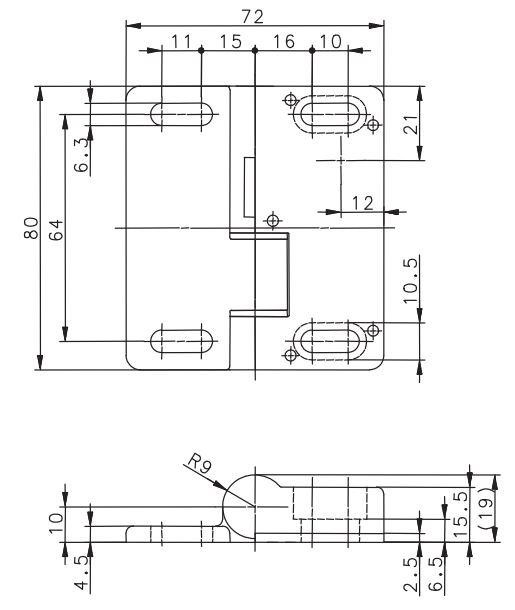

  • Attachment: 4 x M6 screws DIN 7984 or DIN 6912
  • Connection Type: Fixed connecting cable 3 x 0,5 mm² (AWG20) x 5 m Minimum bending radius = 25 mm
