63000401
Alt: S400-M4M12-B, Non-Cancellable / No Returns
$161.00

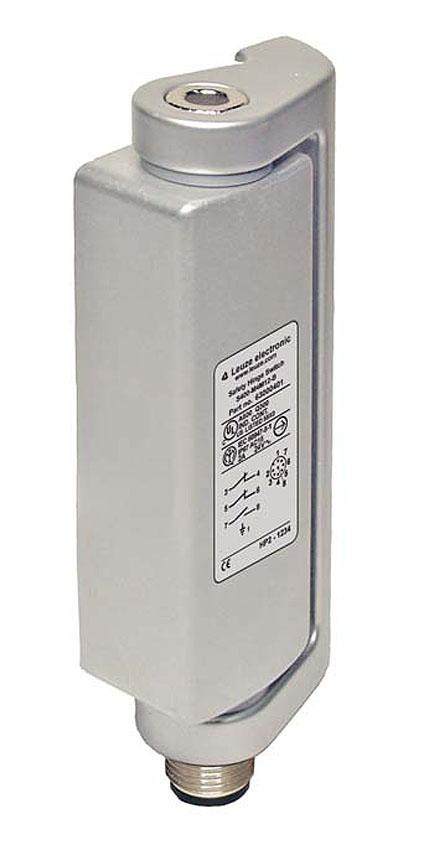

Safety Hinge Switch, NCNR
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!
Leuze has an extensive range of sensors including measuring, safety, identifications and switching.
Their U.S. Headquarters is located in Duluth, Georgia.
Features Include:
- Functions: Locking device without guard interlocking according to ISO 14119, Integration in control circuits up to category 4 in accordance with EN ISO 13849, Mechanical hinge with integrated safety switch
- Rated Insulation Voltage: 30 VAC, 36 VDC
- Conventional Thermal Current, max.: 2 A
- Type of Connection: Connector
- Function: Contact Connection
- Thread Size: M12
- Dimensions: 49 mm x 22.5 mm x 100.6 mm
- Housing Material: Metal, ZAMAK
- Type of Fastening: Mounting thread, mounting plate
