Altech Corp.
KER340R UL

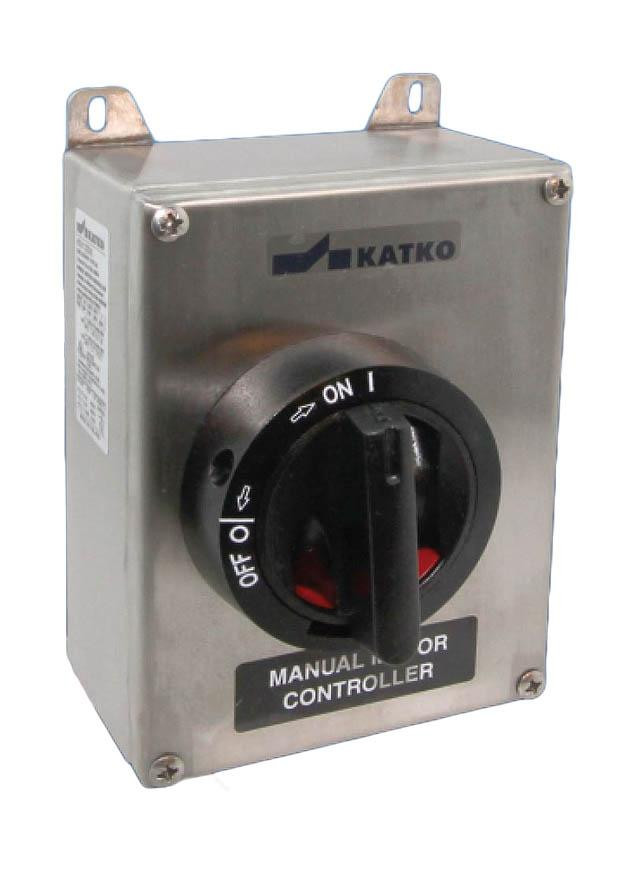

Safety Disconnect Switch, Stainless Steel (Grade AISI 316), 3 Pole, 40A @ 400V, 3 Phase, 7.5/15/20/15hp | 208/415/480/600V, H23T Enclosure, NEMA 4X/IP66
$551.79
KER340RS UL
Alt: KER Series
$775.71
Safety Disconnect, SS, Angled Top, 40A @ 400V, 3PH24T Enclosure, KU 340N Switch, NEMA 4X/IP66
- Weight:
- 3.75 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal AC Drive Solution
Build a complete solution with expert guidance on AC drives and compatible components including motors, circuit breakers and protection equipment
Description
Altech’s new UL Type 4X, IP66 Stainless Steel Safety Disconnect Switches are enclosed, non-fused and ideal for hygienic and harsh environments!
This series is easy to install and clean, acid proof, AISI 316 and have a padlockable stainless steel handle. These disconnect swtiches are available from 16 - 80 Amps.
Part numbers ending in R are without angled top, part numbers ending in RS include the rainhood protection with angled top.
- KER series ending in R or RS are all stainless steel, including handle
- KER series ending in UL are stainless steel with regular handle
This series was designed for use in food and beverage and mining industries. They are padlockable!
Marshall Wolf Automation is your authorized Altech distributor!
Specifications
Amp Rating
40 Amp
Handle
Stainless Steel
Housing/Enclosure
Enclosed
Material
Stainless Steel
Poles
3 Pole
All - Specific Ratings
NEMA 4X
Series
KER Series
Options
Non-Fusible
Alternate Part Number
KER Series
Warranty
1 Year
Weight
3.748
Series Features Include:
- Designed for hygienic and heavy environments
- Easy to install and keep clean
- UL Type 4X, IP66, stainless steel enclosure
- Acid proof, AISI 316
- Options available with rainhood protection with angled top
- Padlockable stainless steel handle
- 3-4 poles available
- General Purpose Current: 25A - 150A
- Maximum Voltage: 600V AC
- Motor FLA @ 480V AC: 17.5A - 34A
- Motor FLA @ 600V AC: 11A - 83A
- 1 Phase and 3 Phase Horsepower Rating
- Short Circuit withstand Rating at 600V with Max. Fuse
- Terminal Size Acceptability: 14-8AWG - 4-1/0AWG
